Chapter 3 Installing the TimeSource 3100
Installing TimeWizard
84 TimeSource 3100 User’s Guide 097-72020-01 Revision K – December 2005

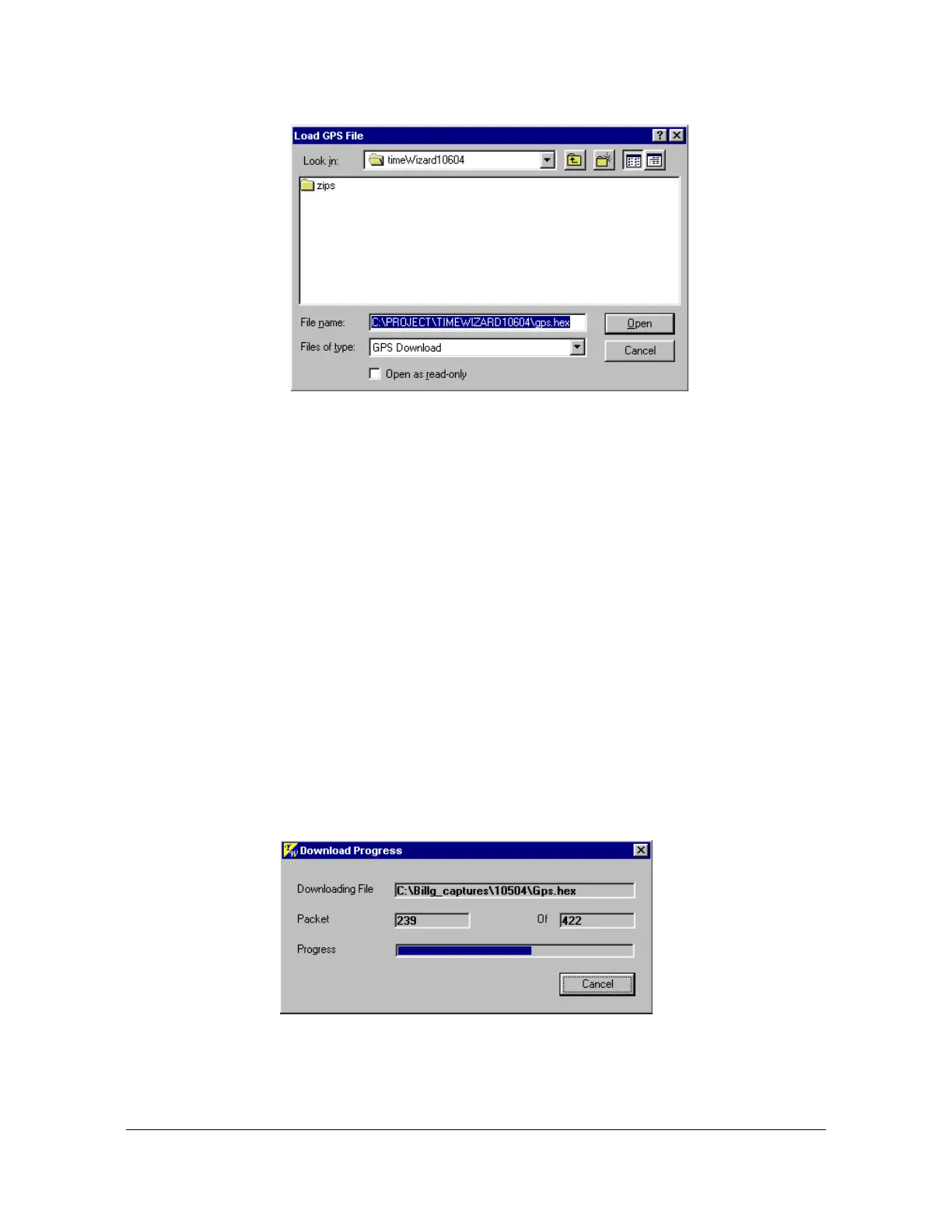

Figure 3-24. The Load GPS File Dialog Box
7. Navigate to the GPS.hex firmware file that you want to download, then click
Open. The message “Verifying version for C:\directory\Gps.hex
(approx 10 secs)” appears in the Command area of the screen. Once
TimeWizard has verified that the version of the firmware is correct, the text on the
ver Unknown button changes to show the version of the firmware to be
downloaded.
After TimeWizard verifies the firmware version, select the Download GPS.hex
check-box.
8. Click Next>> to start the firmware download operation. The Download Progress
dialog box appears, as shown in Figure 3-25.
As the download operation proceeds, the value in the Packet field increases, and
the Progress bar shows the progress of the operation. When the firmware
download is complete, the Download Progress dialog box closes.
After the Download Progress dialog box closes, continue with the next step.
Figure 3-25. The Download Progress Dialog Box
