097-72020-01 Revision K – December 2005 TimeSource 3100 User’s Guide 83
Chapter 3 Installing the TimeSource 3100
Installing TimeWizard
In most cases, it is desirable to proceed with the Use High Speed (115K baud)
check-box selected. In certain instances, as when the PC’s communications port
does not support a 115K baud rate, de-select the Use High Speed (115K baud)
check-box before proceeding.
Downloading the GPS.hex software
5. Click Next>> to advance to the next screen. The Download GPS.hex screen
appears, as shown in Figure 3-23. If you do not want to download the GPS.hex
firmware, click Next>> again to advance to the “Download TS3000.hex” screen,
then skip to Step 9.

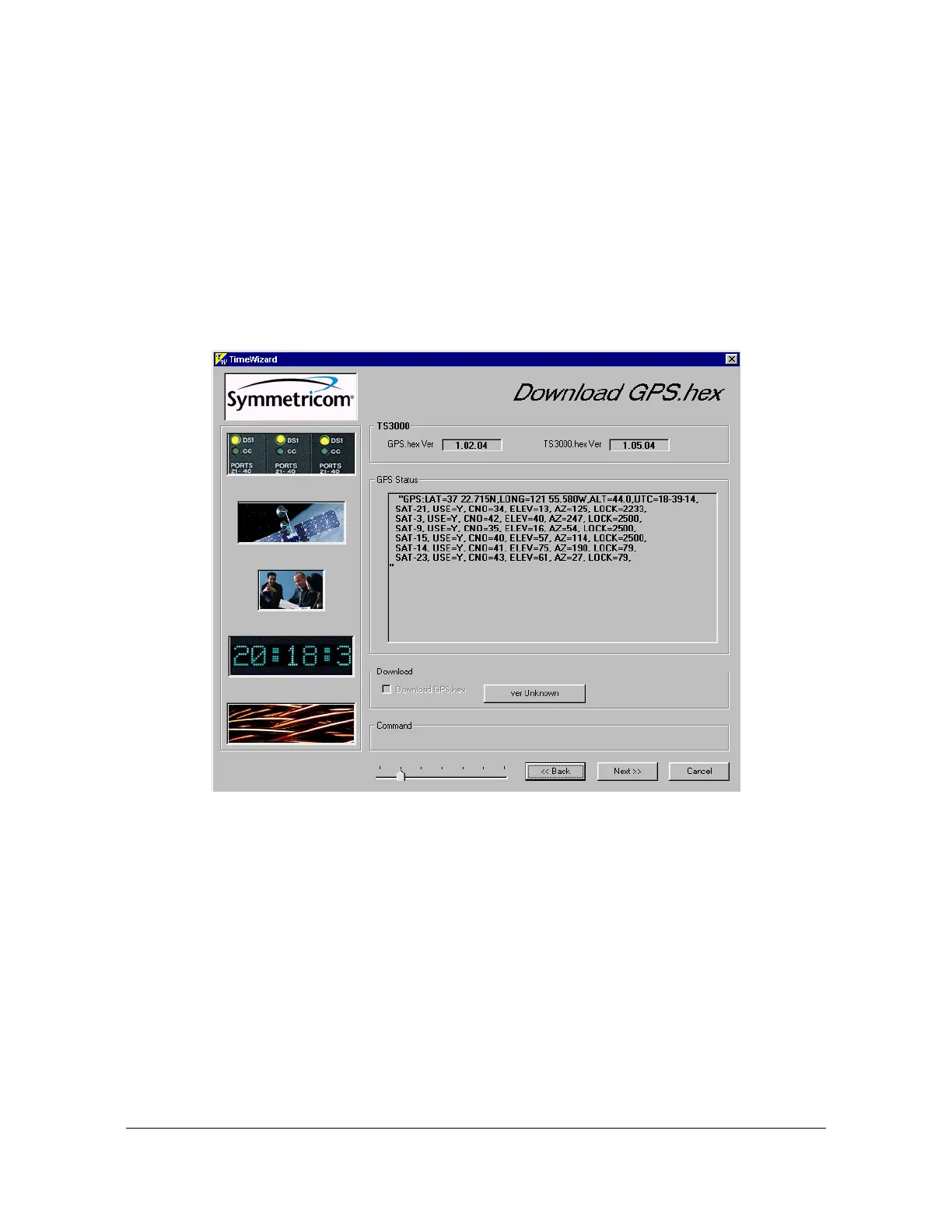

Figure 3-23. The Download GPS.hex Screen
The versions of the GPS.hex and TS3000.hex firmware that are currently
installed in the TimeSource are shown in the GPS.hex Ver and TS3000.hex Ver
fields. Current satellite information is shown in the GPS Status field.
6. Click ver Unknown. The Load GPS File dialog box, shown in Figure 3-24,
appears.
