Chapter C Chapter C
Maintenance Mode
95
W301-0411E
2.8.4 MDT Check, Display of Upper Section Di Check State
Displays the input/output status of MDT. In the MDT check selection menu of Fig. 2.8.1, select "Upper Di Check,"
and press the <
> key to display the MDT check upper Di signal state display screen shown in Fig. 2.8.2.
To go back to the MDT check selection menu, press the <
> key.

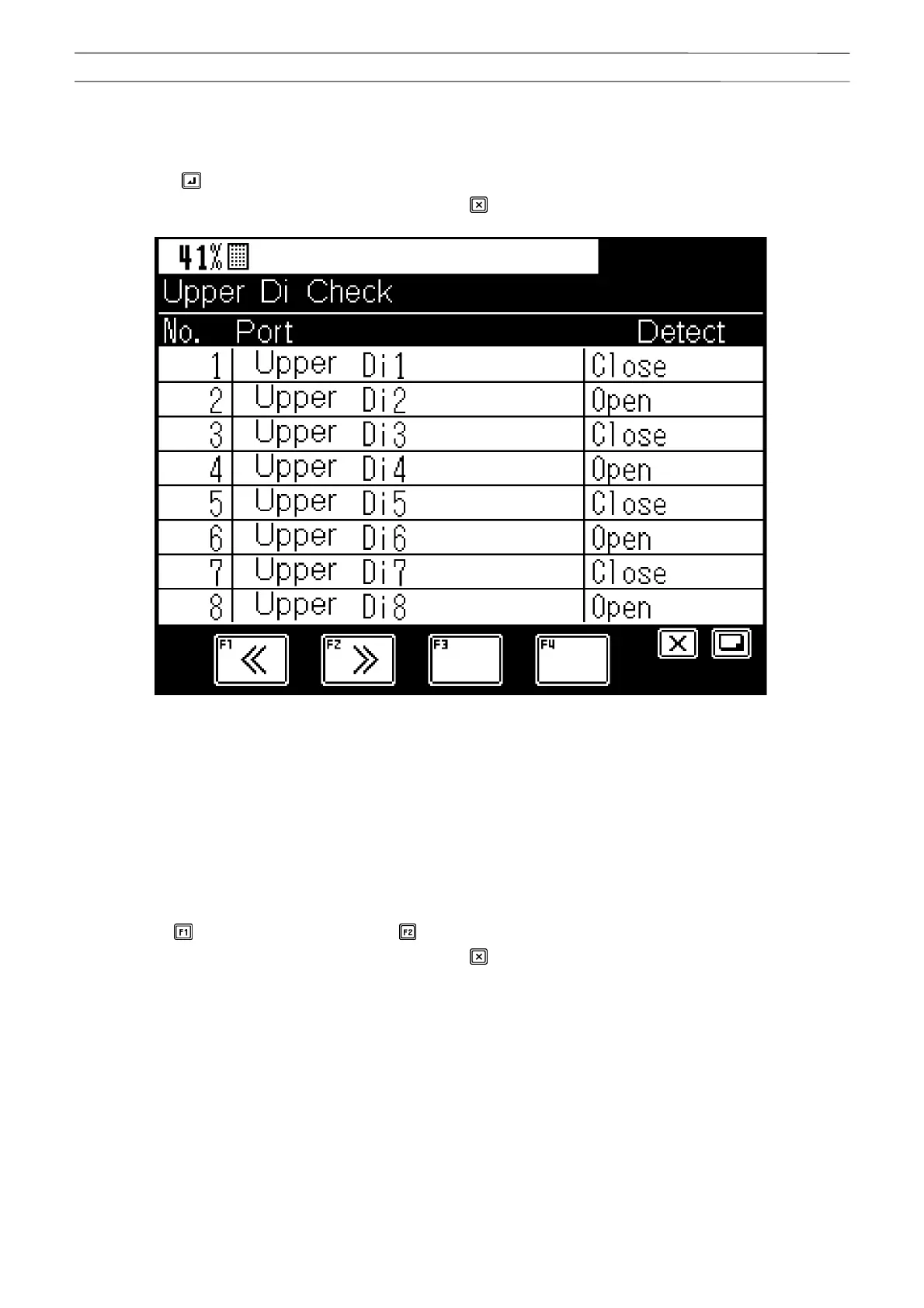

Fig. 2.8.2 Display screen of MDT check upper Di signal state
<Description of display contents>
No.: Input/output number of upper Di signal state display (1 to 64)
Port: Upper Di state display signal name
Detect: Close … Contact ON
Open … Contact OFF
<Operation method>
Pressing the <
> key (previous page) or the < > key (next page) changes the pages.
To go back to the MDT check selection menu, press the <
> key.
To Next Page
