2.8.12 MDT Check, Display of Pi Check State
Displays the input/output status (pulse) of MDT. In the MDT check selection menu of Fig. 2.8.1, select "Pi
Check," and press the <
> key to display the MDT check Pi signal state display screen shown in Fig. 2.8.10. To
go back to the MDT check selection menu, press the <
> key.

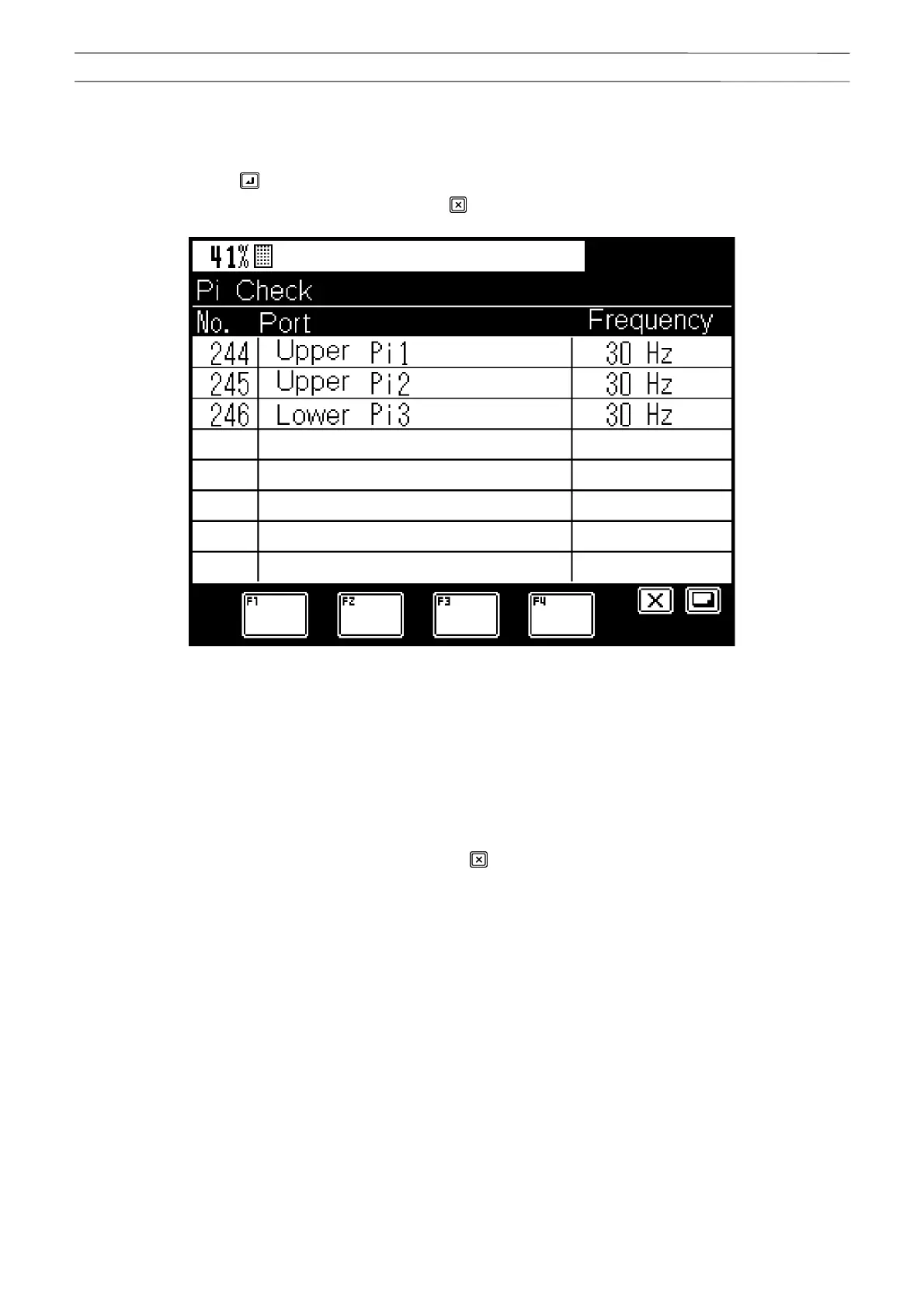

Fig. 2.8.10 Display screen of MDT check Pi signal state
<Description of display contents>
No.: Input/output number of Pi signal state display (244 to 246)
Port: Pi state display signal name
Frequency: Pulse input frequency (Hz)
<Operation method>
To go back to the MDT check selection menu, press the <
> key.
