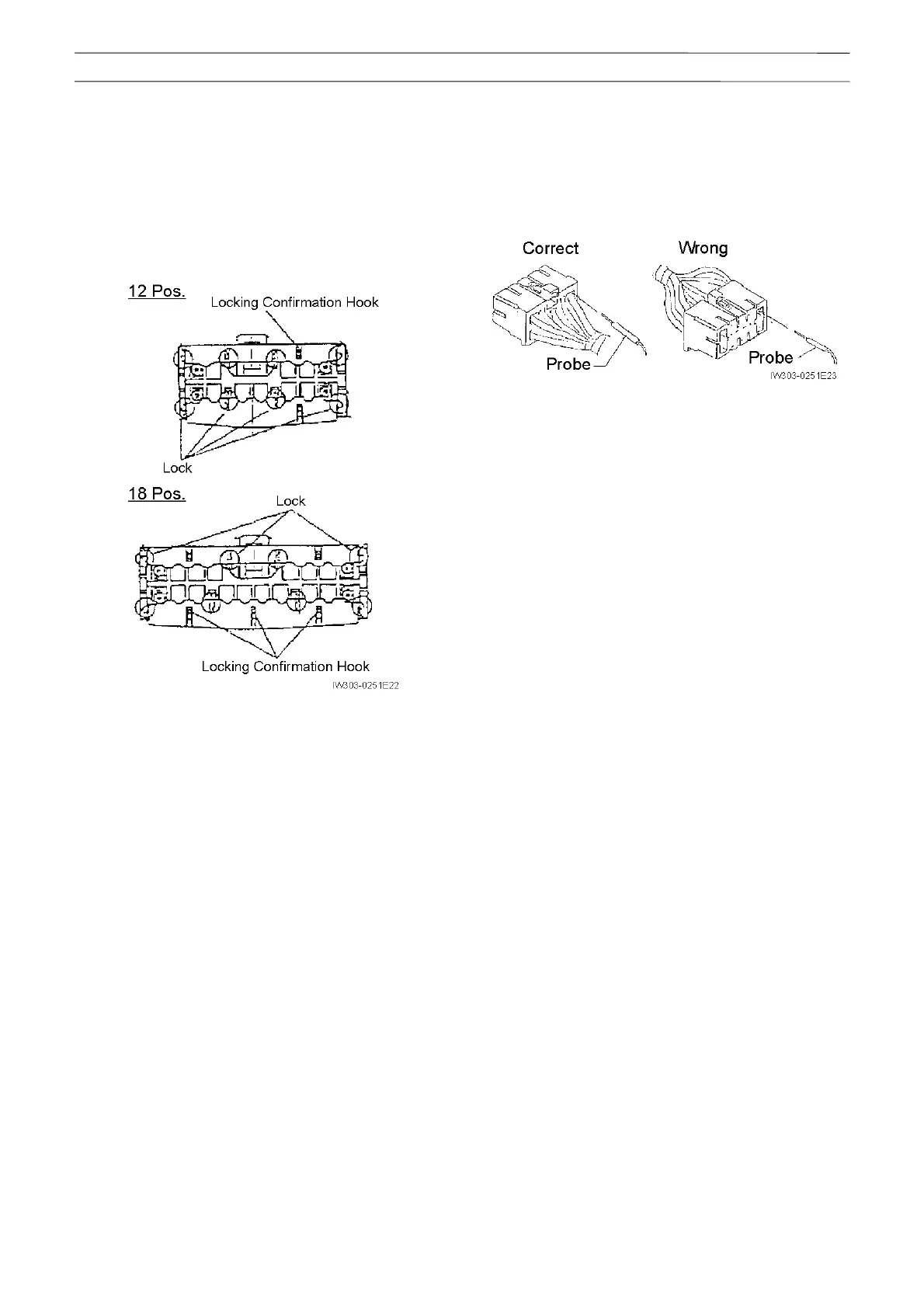

Double lock
1. After the insertion of contact into the housing,
doublelock it (hinge type). There are eight places
to lock. Please make sure to lock all of them.
Confirmation of Locking:
Please make certain of the complete of locking
by checking the hooks and the locks on both
sides.
2. Increase of Contact Keeping Strength can be
expected by doublelocking.
3. Releasing Doublelock:
Refer to contact extraction tool(755430-2)
instruction sheet.
"Please obey the authorized instruction to
release,otherwise the housing could be damaged.
Please release it properly."
Harness Checker
1. Please refer to the Fig. below to check the current
running of assembled harness.
“Use of Current Checker of Spring Pin is preferable.”
To Next Page
