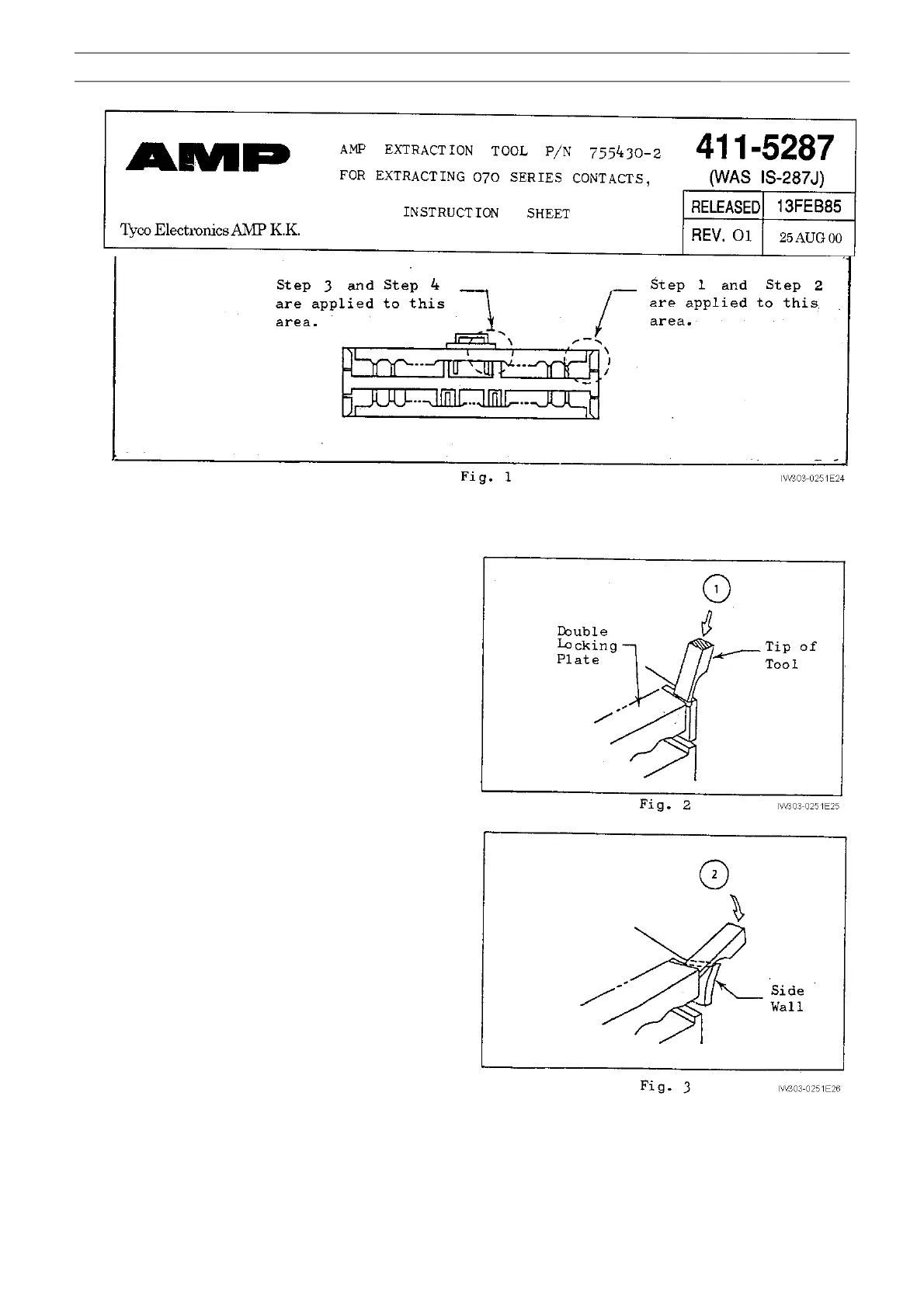

1.INTRODUCTION:
AMP Extraction Tool, P/N 755430-2 has been
designed to extract 070 Series contacts from
double lock housing.
Read this instruction sheet carefully, before you
start operation.
2.UNLOCKING HINGE-LOCKING DEVICE:
The loaded contacts are locked by the double
locking hinge device. It is necessary to unlock the
hinge locking device, before to start removal of
contacts from the housing.
Opening of hinges should be performed carefully,
not to damage them during handling. Open one
after one, gradually.
Releasing Side Locking Device:
1. Insert tip end of the tool into the gap between
the double-lock hinge and side wall of housing
as shown in Fig.2.
2. Tilt the tool so that the tip end digs up the
double-lock plate with the side wall partially
bending outside to release locking device as
shown in Fig.3.
NOTICE
Care must be taken not to apply an excessive force,
lest it should result damage of housing wall etc.
