Chapter C Chapter C
Maintenance Mode
139
W301-0411E

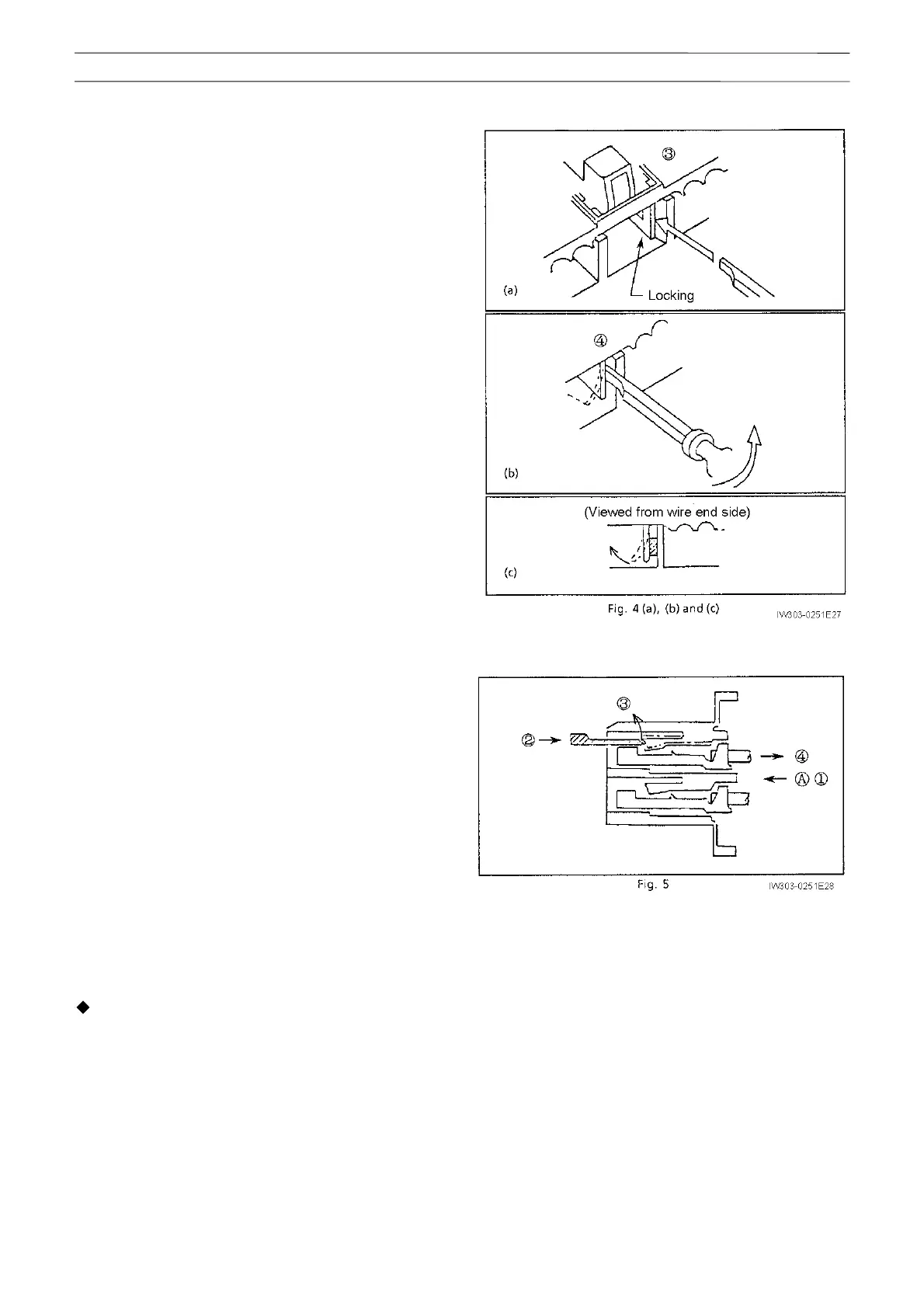

Releasing Center Locking Device:
3. Insert tip end of the tool into the gap of locking
device with its flat sides facing aside as shown in
Fig.4.
4.Tilt the tool in the arrowed direction to raise the
hinge with the locking arm bending out.
Repeat the steps from 1 to 4 to release on both
sides in the same manner, so that all the locking
devices are unlocked and hinges become free for
raising up.
Avoid bending walls excessively to prevent from
damage during operation.
3.EXTRACTION OF CONTACTS:
Insert tip end of the tool into the housing cavity
from the mating side of housing, so as to raise the
locking lance of housing. This will make contact
unlocking.
Proceed as follows (Fig.5):
1. Push back the contact into the housing in the
direction "A". This will result relaxing of locking
tension prior to unlocking.
2. Insert extraction tool into the housing cavity.
3. Raise the locking lance in housing.
4. Pull back the contact from the housing.
NOTICE
Avoid inserting tool tip from reaching the contact
leaf area for prevention from contact deformation
and damage.
To Next Page
