STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 4.6

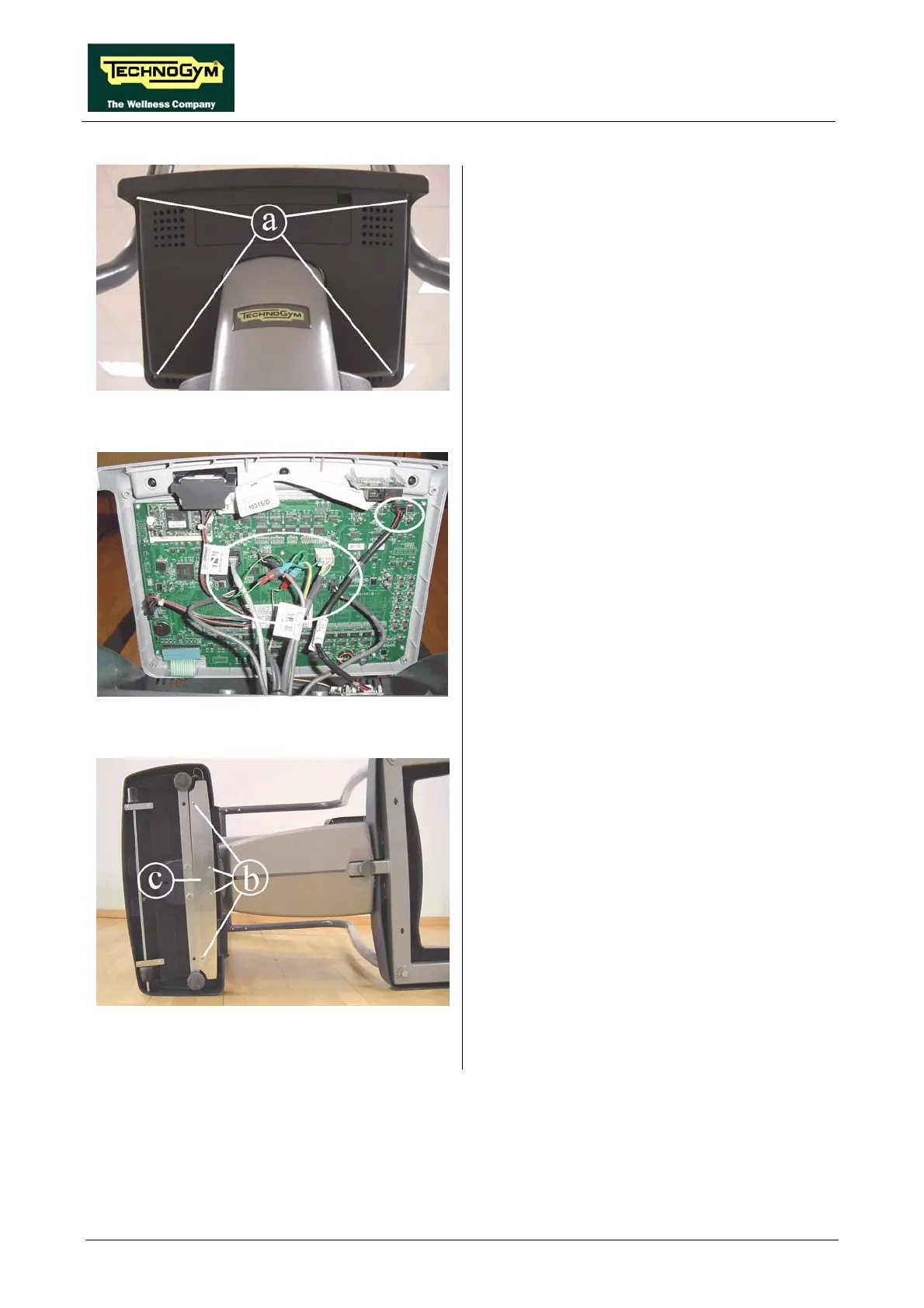

Figure 4.5-3
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 4 screws a using a medium
Phillips screwdriver.
Figure 4.5-4
3. Unplug the connectors indicated in the
figure.
4. Remove the display.
Figure 4.5-5
5. Turn the machine over on one side.
6. Back off the 4 screws b using a Phillips
screwdriver.
7. Remove the cover c.
Continued on following page →
