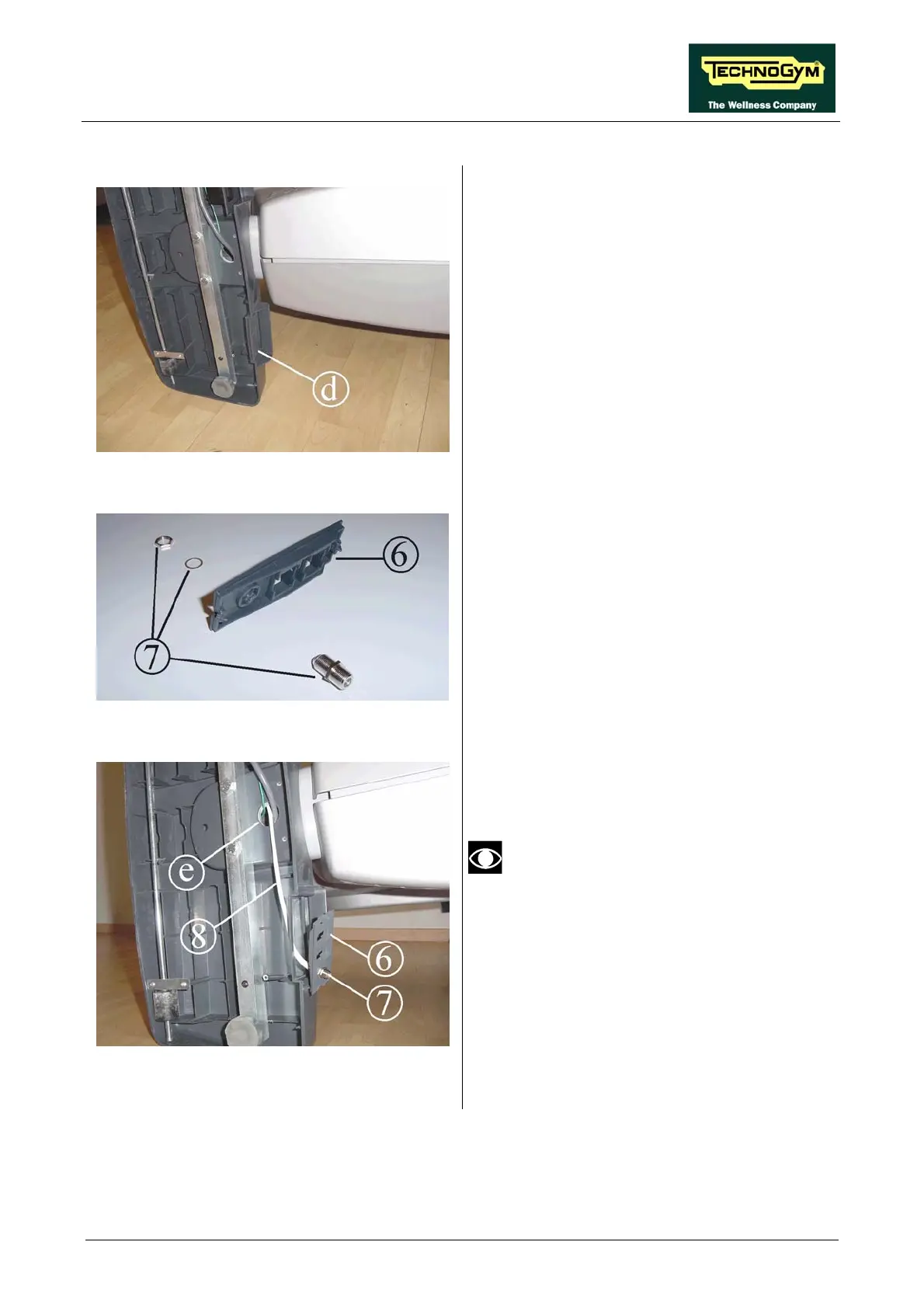

Figure 4.5-6
8. Remove connector plate d from the front
platform.
Figure 4.5-7
9. Assemble union connector 7 on connector
plate 6, securing it with its own lock-nut after
inserting the washer, as shown in the figure.
Figure 4.5-8
10. Insert cable 8 (STP_07) into hole e, and
bring it out from the top of the machine.
If the cable doesn’t pass trough the
machine frame, use a cable puller.
11. Plug the lower end of cable 8 (STP_07) into
union connector 7, previously assembled on
connector plate 6.
12. Snap connector plate 6 into its seat on the
platform.
13. Turn the machine back upright.
Continued on following page →
