STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.2
7.1.2. 700I E WELLNESS TV TOUCH SCREEN VERSION

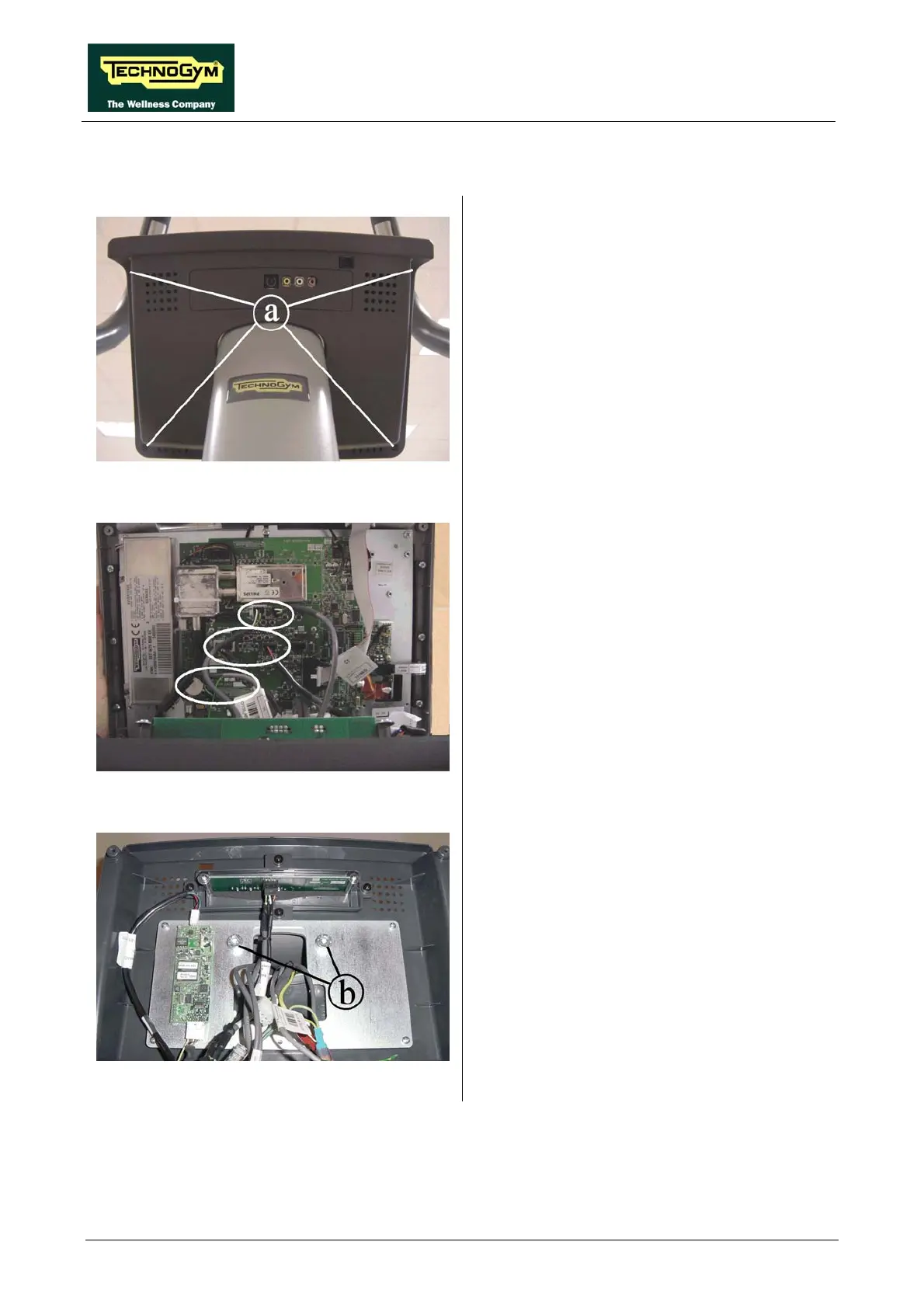

Figure 7.1-4
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 4 screws a using a medium
Phillips screwdriver.
Figure 7.1-5
3. Unplug the cables indicated in the figure
from the connector board and the CSafe
board.
4. Remove the display.
Figure 7.1-6
5. Back off the 2 screws b, using an 8-mm hex
wrench, to remove the rear display support.
To reassemble the display, carry out the above
steps in reverse order.
