STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 7.3
7.1.3. 500I AND 500I SP VERSION

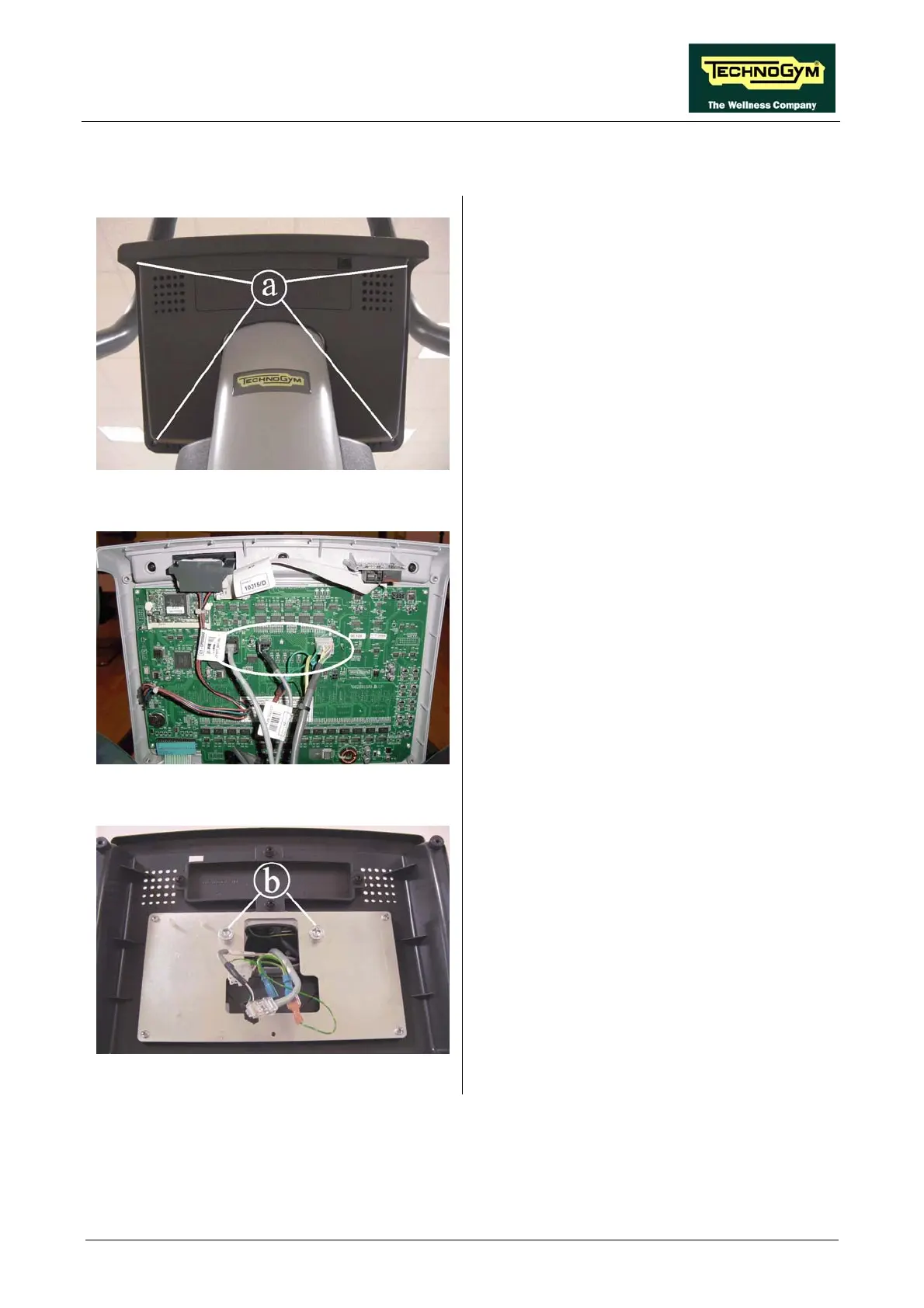

Figure 7.1-7
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 4 screws a using a medium
Phillips screwdriver.
Figure 7.1-8
3. Unplug the connectors indicated in the figure
at left.
4. Remove the display.
Figure 7.1-9
5. Back off the 2 screws b, using an 8-mm hex
wrench, to remove the rear display support.
To reassemble the display, carry out the above
steps in reverse order.
