Analyzing waveforms Set up Ethernet search parameters
Click the Search For selections Start of Frame (see page 362), MAC Addresses (see page 362), Q-Tag
Control Information (see page 363), MAC Length/Type (see page 363),IPv4 Header (see page 363),TCP
Header (see pa
ge
364),MAC Data (see page 364),TCP/IPv4 Client Data (see page 365),End of Packet (see
page 365),Idle (see page 365),orFCS (CRC) Error (see page 366), to view their parameters.
What do you wa
nt to do next?
Learn about bus setups. (see page 95)

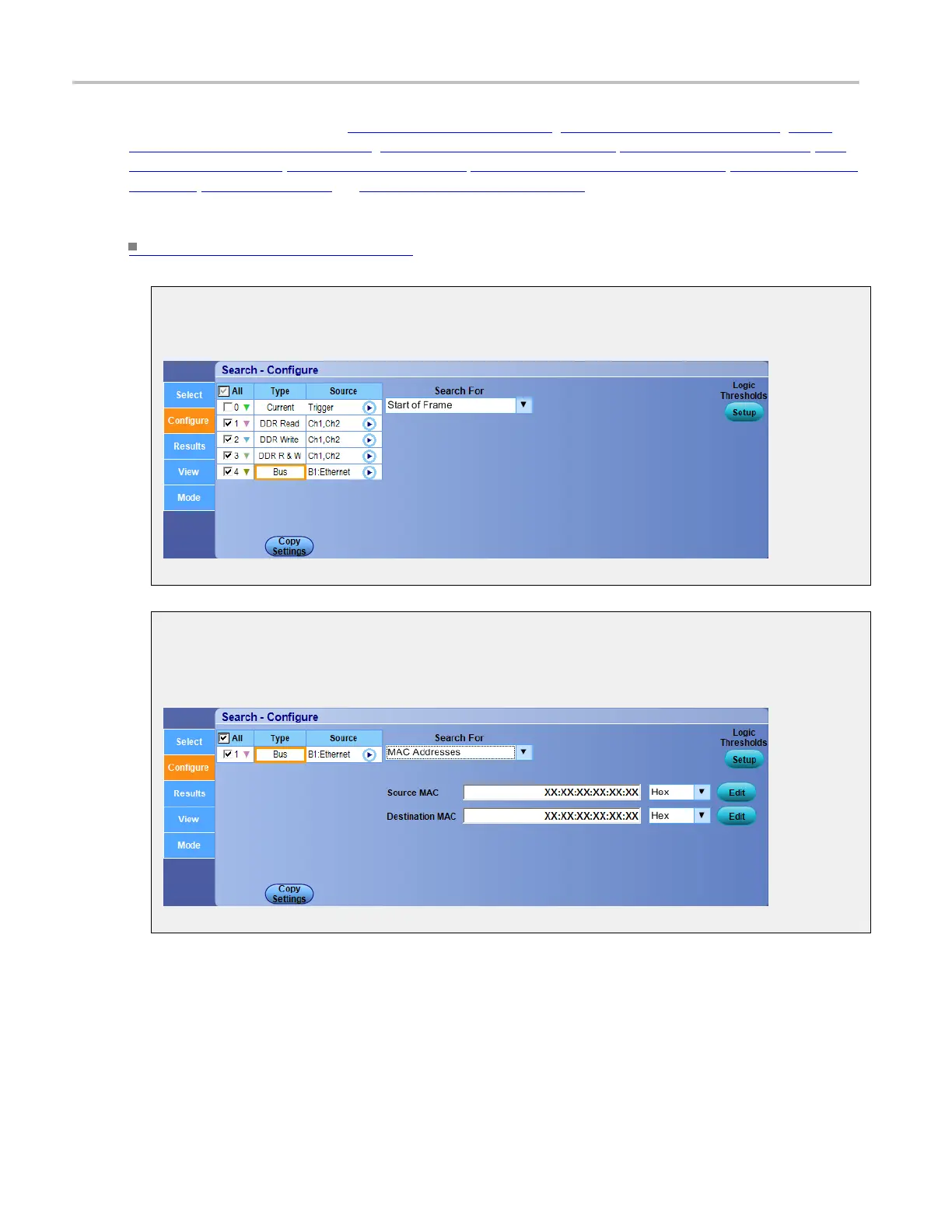

Startofframe
Select Start of Frame to search for the Ethernet Start of Frame.
MAC ad
dresses
The data type options available in Search For MAC Address are Source MAC, and Destination MAC.
To search for an Ethernet MAC address, enter the Source MAC and D estination MAC addresses.
362 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
