AGL7 module interconnect diagram
AGL7 module in
terconnect diagram
The followin
g figure shows the AGL7 module and how it interconnects with the
TG8000 mainframe. Diagrams showing mainframe component interconnections,
such as power supply and oscillator, can be found in the Mainframe diagrams
section of this manual. (See page 2-9.)
A block diagram of the AGL7 module is located in the AGL7 module theory
of operation section. (See page 4-12.)

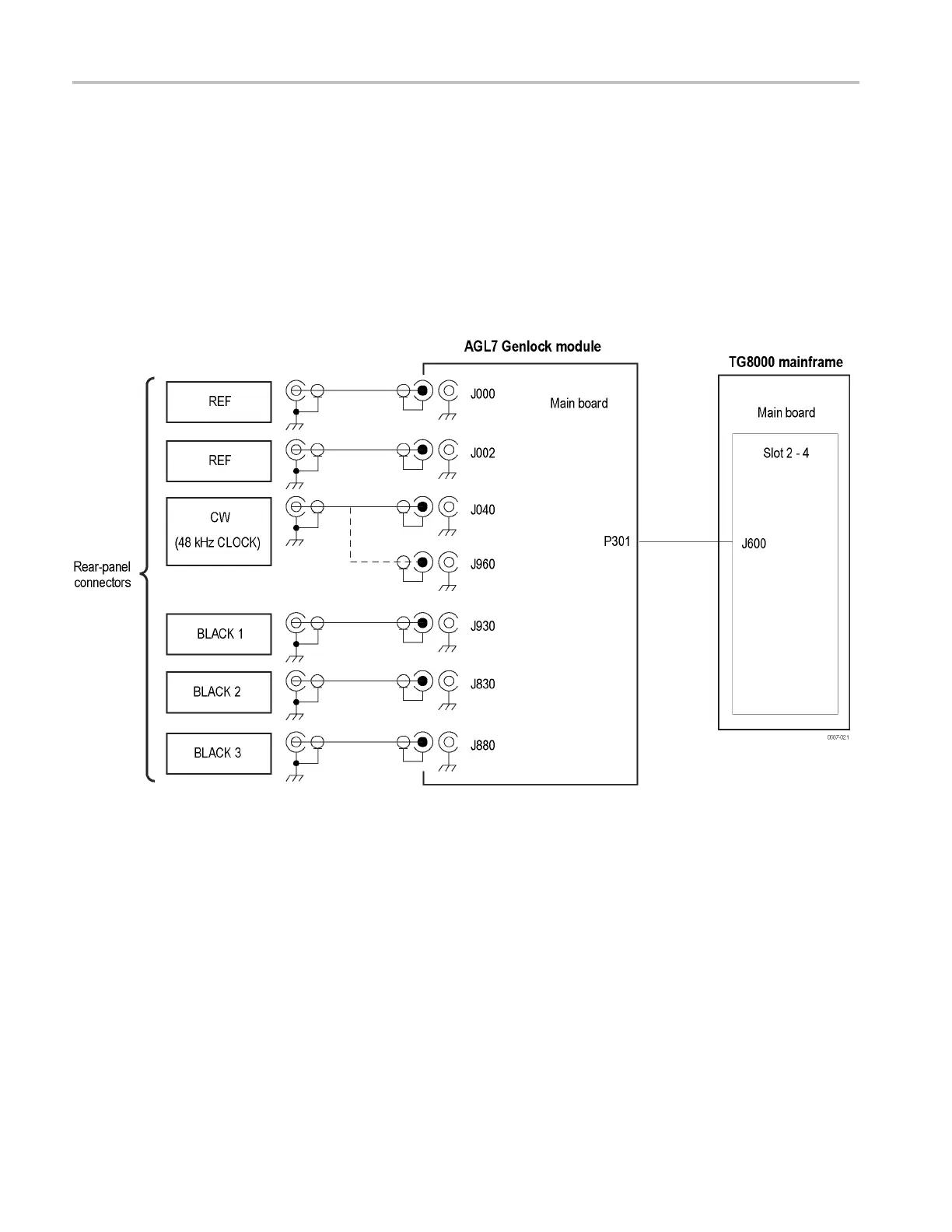

Fig
ure 4-6: AGL7 module interconnect diagram
4–14 TG8000 Multiformat Test Signal Generator Service Manual
