Tektronix TG8000 Service Manual

Mainframe replaceable parts list
Table 2-7: Main
frame replaceable parts
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd Qty Name & description
2-15--1 211-1194-01 28
SCREW, MACHINE; M3 X 6MM, FLH BLACK, CROSS REC
-2 200-5257-00 1
CABINET, TOP MAIN CHASSIS, SAFETY CONTROLLED
-3 650-5544-00 1
POWER SUPPLY ASSY, TG8000
The Power Supply assembly has replaceable subparts. (See Figure 2-18 on
page 2-43.)
-4 441-2690-00 1
CHASSIS, MAIN ASSEMBLY, SAFETY CONTROLLED
The chassis assembly has replaceable subparts. (See Figure 2-16 on page 2-39.)
-5
351-1136-00 1
RACK, KIT, SLIDES
The associated rackmount rail kit is supplied as a standard accessory with the
instrument. (See Table 2-12 on page 2-45.)
-6 354-0025-00 2
RING, RETAINING; EXTERNAL, U/O 0.187 DIA SFT, ZINC PLATED STEEL
-7
213-0216-00 2
THUMBSCREW; 10-32 X 0.85, 0.375 OD HD, ZINC PLATED STEEL, W/SLOT
-8 650-5546-00 1
FRONT PANEL ASSY, TG8000
The Front Panel assembly has replaceable subparts. (See Figure 2-17 on page 2-41.)

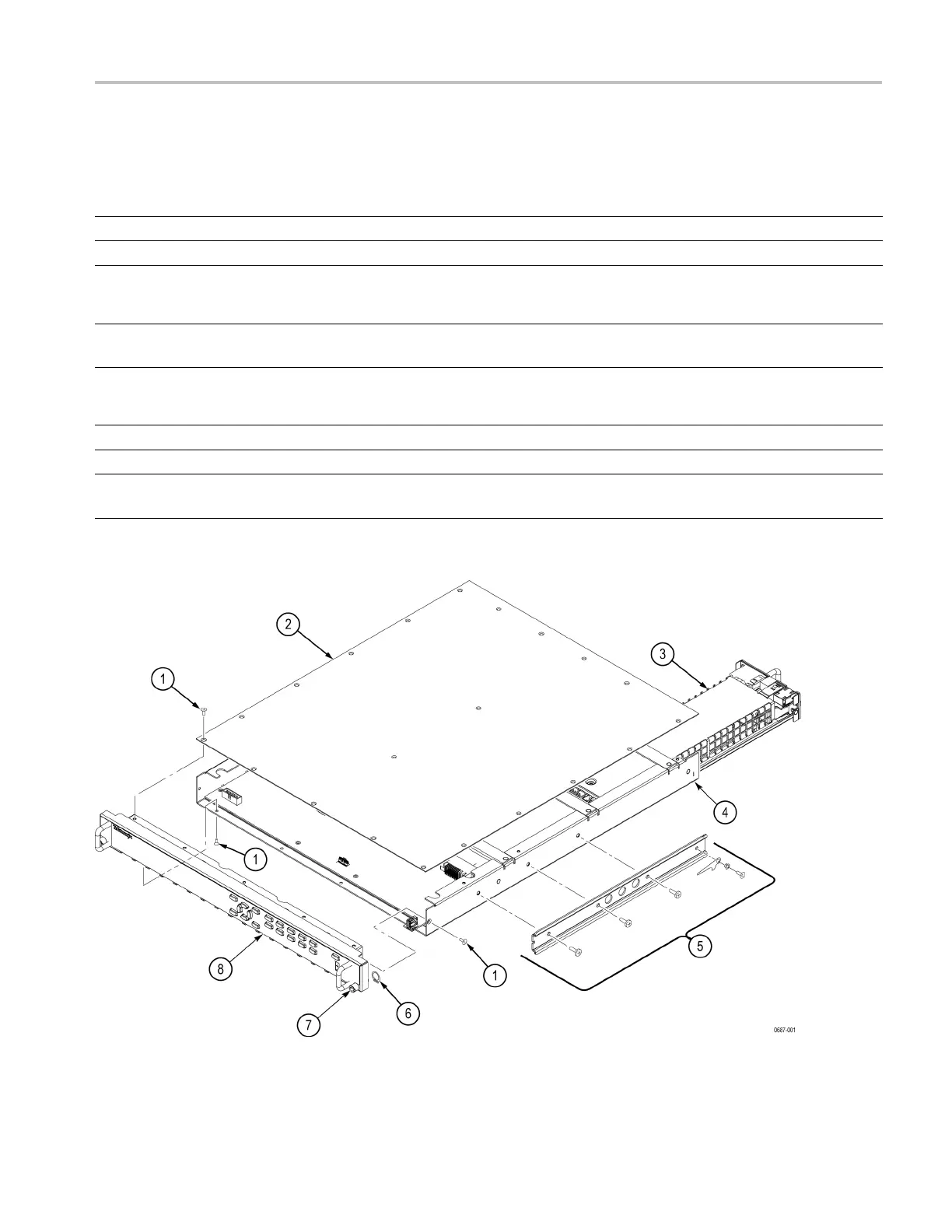

Figure 2-15: Mainframe replaceable parts
TG8000 Multiformat Test Signal Generator Service Manual 2–37
