Tektronix TG8000

Mainframe removal and installation procedures
TG8000 modules
The following fi
gures show the location of the replaceable modules in the TG8000
mainframe.

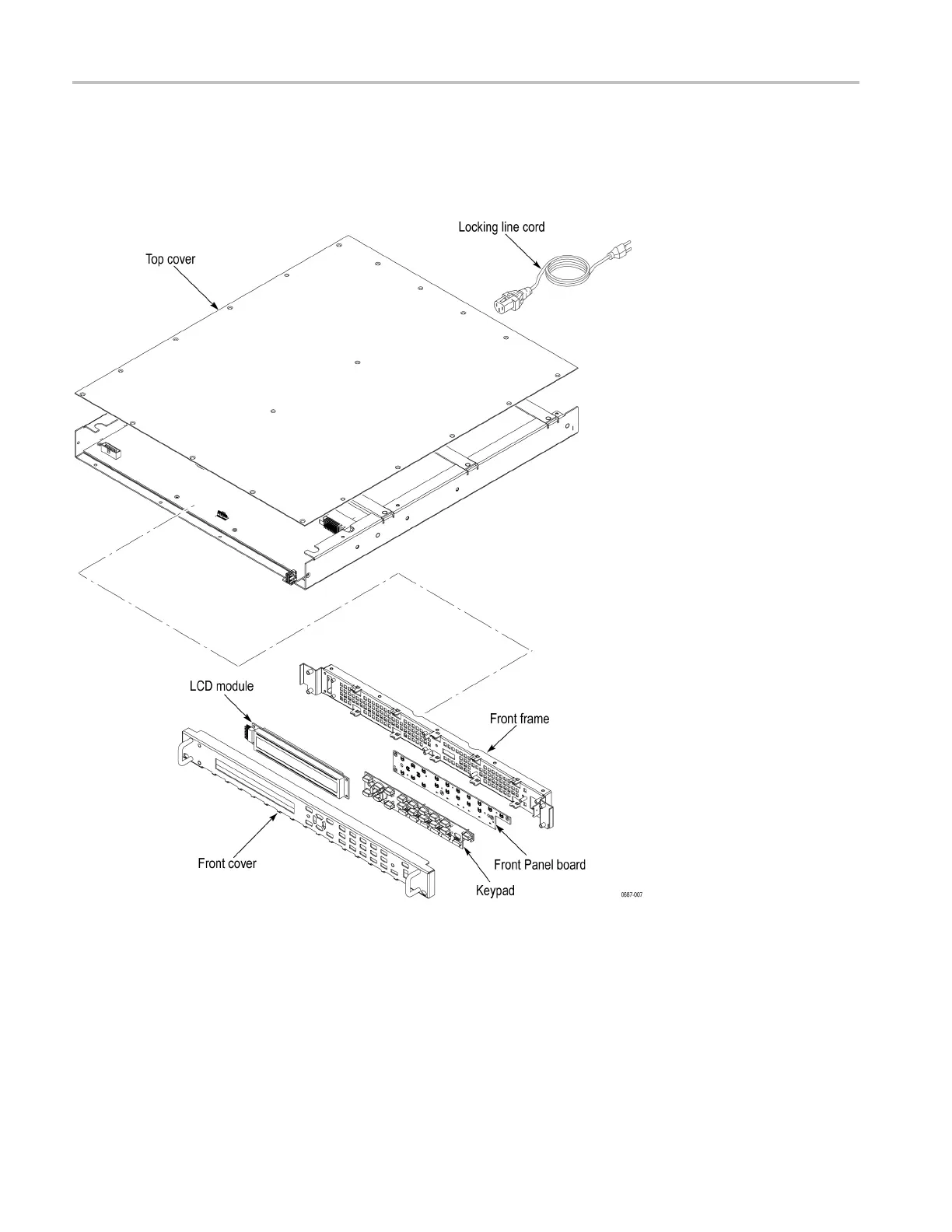

Figure 2-6: Top cover, line cord, and Front Panel assembly
2–22 TG8000 Multiformat Test Signal Generator Service Manual
