Tektronix TG8000

Mainframe replaceable parts list
Table 2-11: Bla
nk panel replaceable parts
Fig. &
index
number
Tektronix part
number
Serial no.
effective
Serial no.
discont'd Qty Name & description
2-19- 614-1051-00 1
PANEL, BLANK ASSY, W/GASKET & LOCK SCREW
Subparts
-1 407-5498-00 1
BRACKET, FILLER PLATE, DIE CAST
-2 214-4762-00 2
SPRING, CONICAL
-3 211-0911-00 2
SCREW, MACHINE; M2.5, PITCH 0.45MM, LENGTH 11MM, HEAD DIA 5MM, HEAD
HEIGHT 2MM, BRIGHT NICKEL FINISH STEEL, SLOTTED PHILLIPS
-4 348-A156-01 1
GASKET, SHIELD; FINGER TYPE, BE-CU, 8.13MM W X 2.79MM H X 406.4MM L
Figur

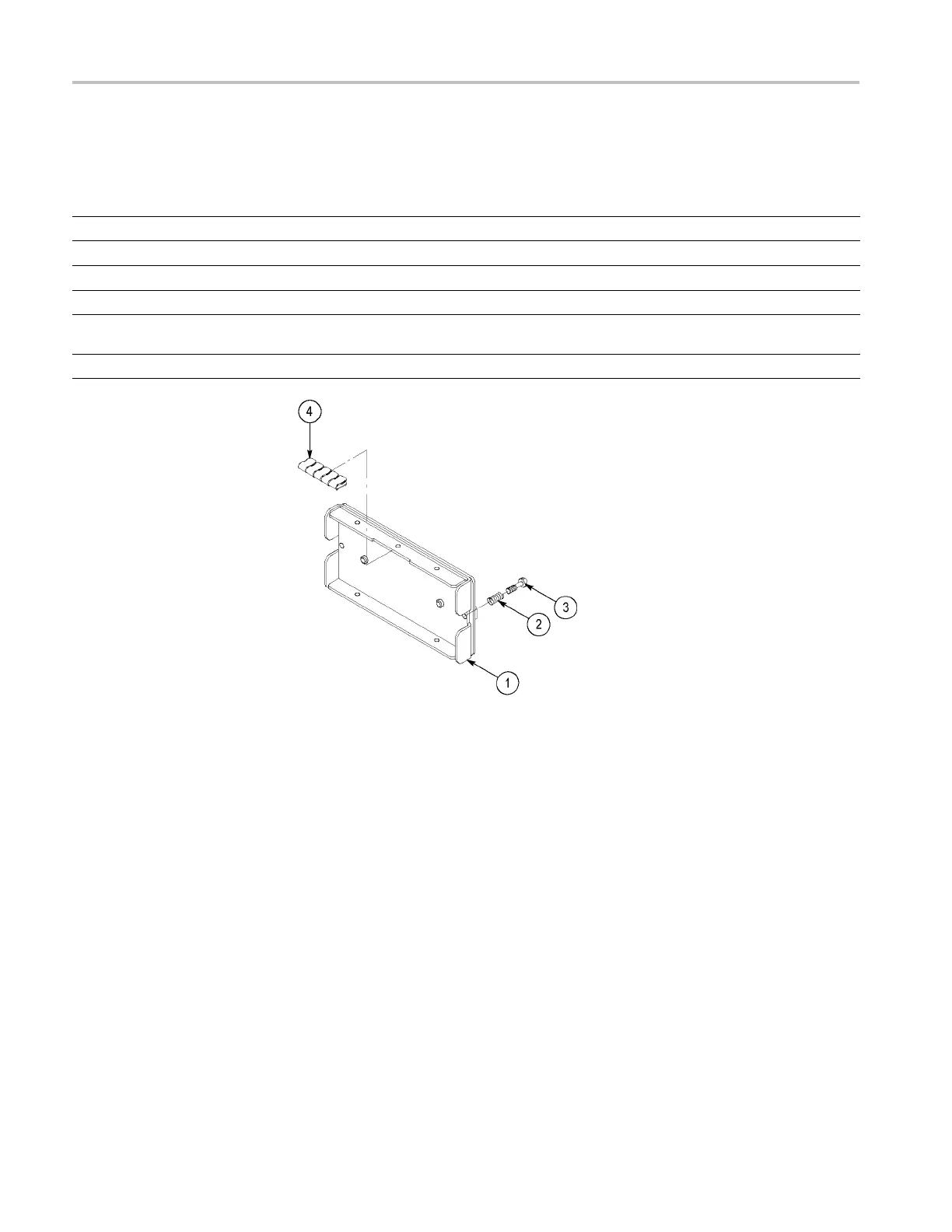

e 2-19: Blank panel replaceable parts
