HDVG7 module interconnect diagram
HDVG7 module i
nterconnect diagram
The followin
g figure shows the HDVG7 module and how it interconnects with
the TG8000 mainframe.
Diagrams sh
owing mainframe component interconnections, such as power supply
and oscillator, can be found in the Mainframe diagrams section of this manual.
(See page 2-9.)
A block diagram of t he HDVG7 module is located in the HDVG7 module theory
of operation section. (See page 13-10.)

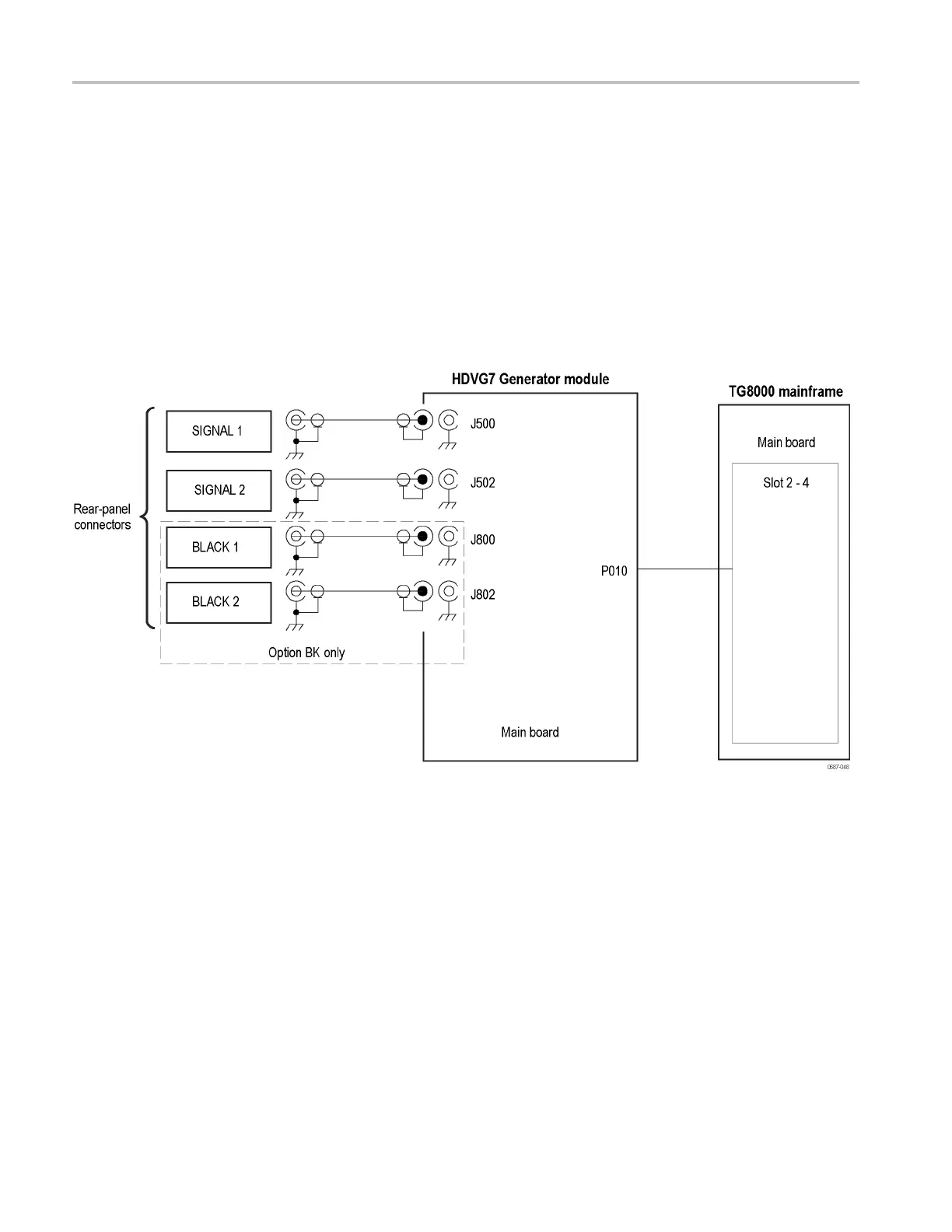

Figure 13-3: HDVG7 module interconnect diagram
13–12 TG8000 Multiformat Test Signal Generator Service Manual
