ATG7 module interconnect diagram
ATG7 module in
terconnect diagram
The followin
g figure shows the ATG7 module and how it interconnects with
the TG8000 mainframe.
Diagrams sh
owing mainframe component interconnections, such as power supply
and oscillator, can be found in the Mainframe diagrams section of this manual.
(See page 2-9.)
A block diagram of the ATG7 module is located in the ATG7 module theory of
operation section. (See page 5-9.)

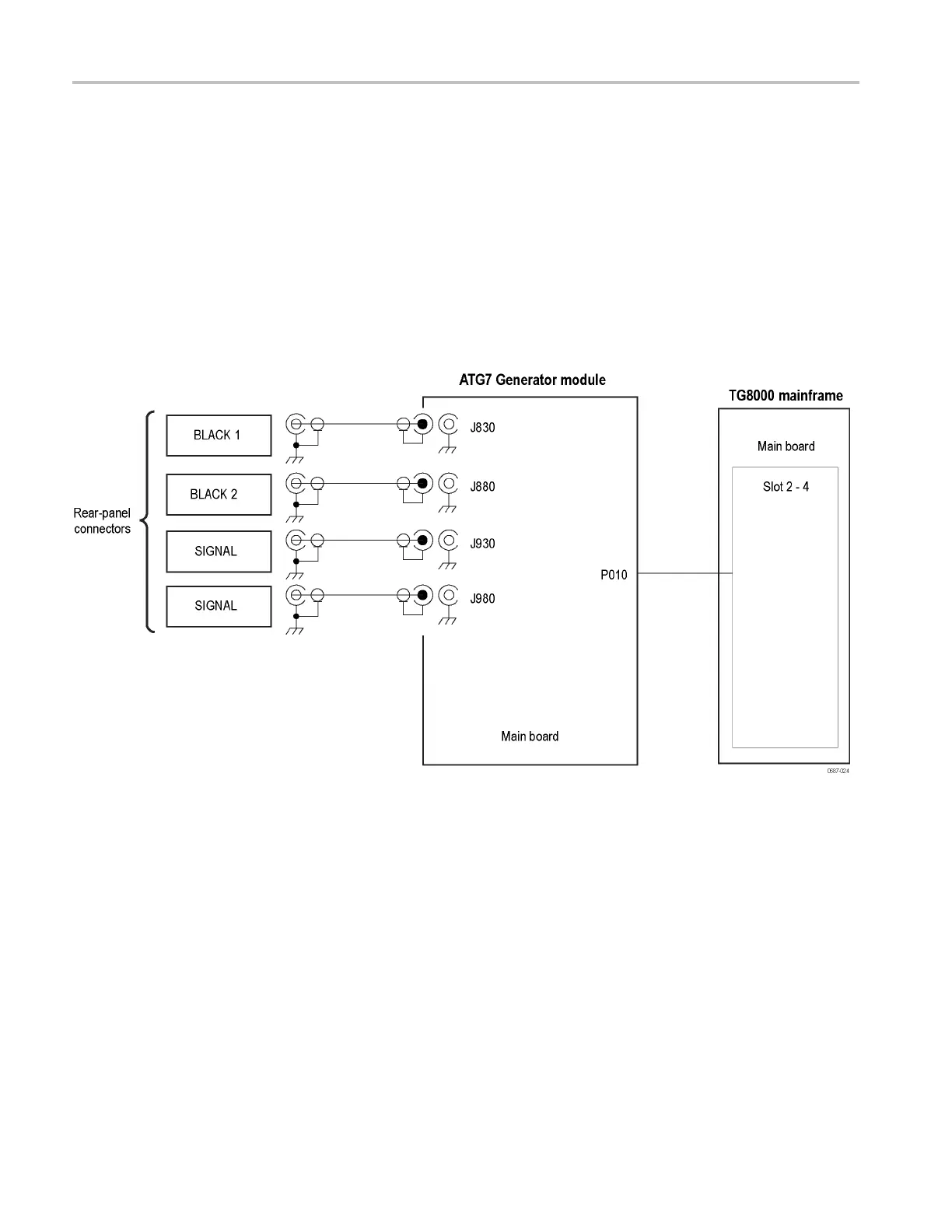

Figure 5-6: ATG7 module interconnect diagram
5–10 TG8000 Multiformat Test Signal Generator Service Manual
