Tektronix TG8000 Service Manual

AGL7 module adjustment procedures
To adjust the o
utputoffsetandgain
Preparation
To perform the output offset and gain adjustment, you must first remove the top
cover of the T
G8000 mainframe. (See page 2-25, Top cove r.)
After you have removed the top cover, find the variable resistors on the AGL7
circuit boa
rd. See the following fi gure.

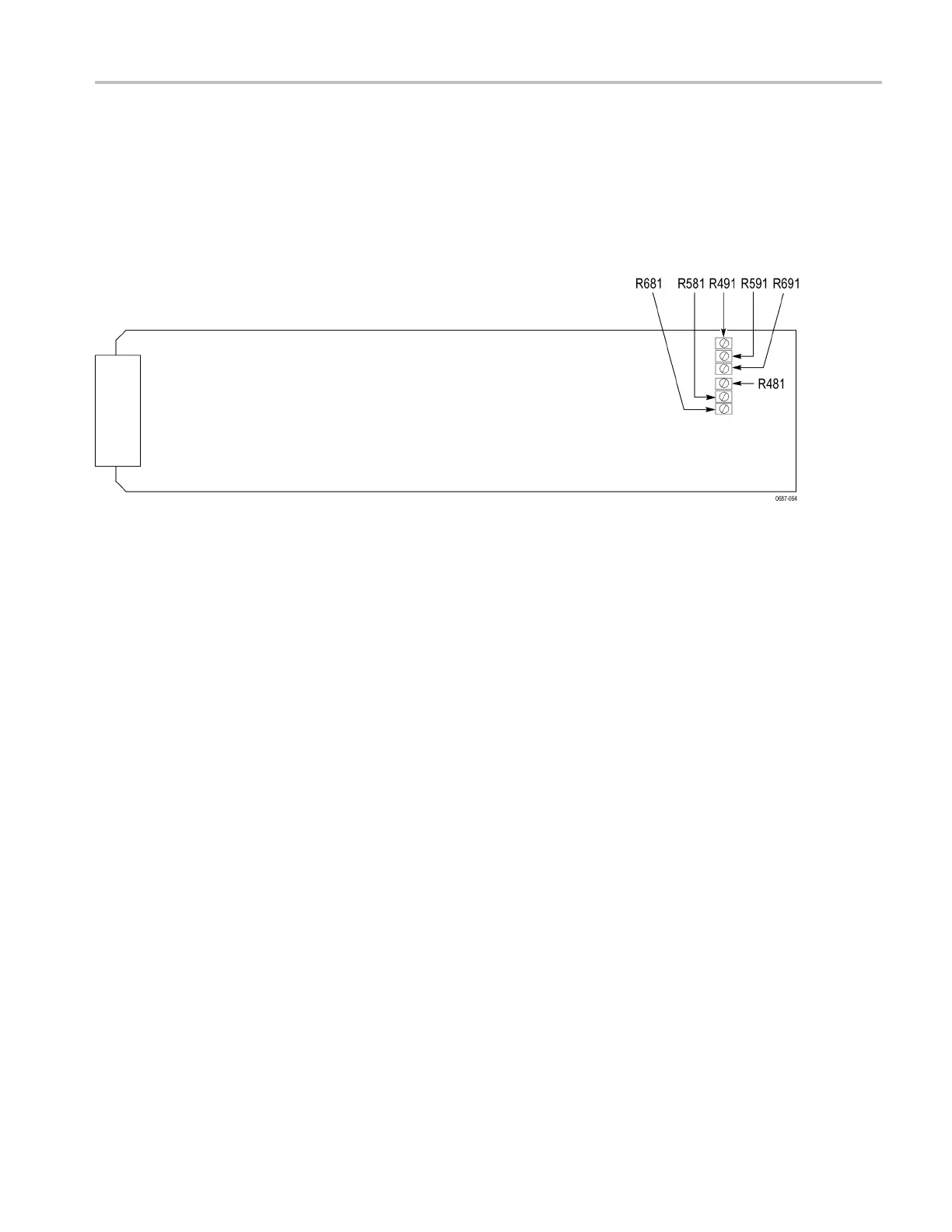

Figure 4-1: AGL7 module circuit board
TG8000 Multiformat Test Signal Generator Service Manual 4–3
