Module installation and removal
To install a module
To install a module into an empty slot in the mainframe, perform the following
procedure:
1. Unplug the power cord from the power connector on the rear panel of the
mainframe.
2. Use the following guidelines to select the slot where you will install the
module. The following figure shows a sample module configuration with
the associated slot numbers.
For AGL7 and GPS7 modules, only one of these modules can be installed
in the TG8000 mainframe at a time, and it must be installed only in slot 1.
All other modules may be installed in any slot location.
NOTE. Wh
en installing a GPS7 module into an existing TG8000 mainframe,
it is suggested that you calibrate the mainframe oscillator oven as part of
the installation and qualification process. (See page 2-2, Mainframe clock
adjustment.)
Although the GPS7 module will operate only in slot 1, you can use the GPS7
module to test diagnostics in each of the four mainframe slots. Refer to the
TG8000 Specifications and Performance Verification Technical Reference
manual for more information.
For the AG7, ATG7, AVG7, AWVG7, BG7, DVG7, HD3G7, HDLG7,
HDVG7, and SDI7 modules, up to four of the modules can be installed
in t
he TG8000 mainframe.
The TG8000 Power Supply module is user replaceable and must be
in
stalled only in the position shown in the following fi gure. The TG8000
Power Supply module cannot be installed in a TG700 mainframe.

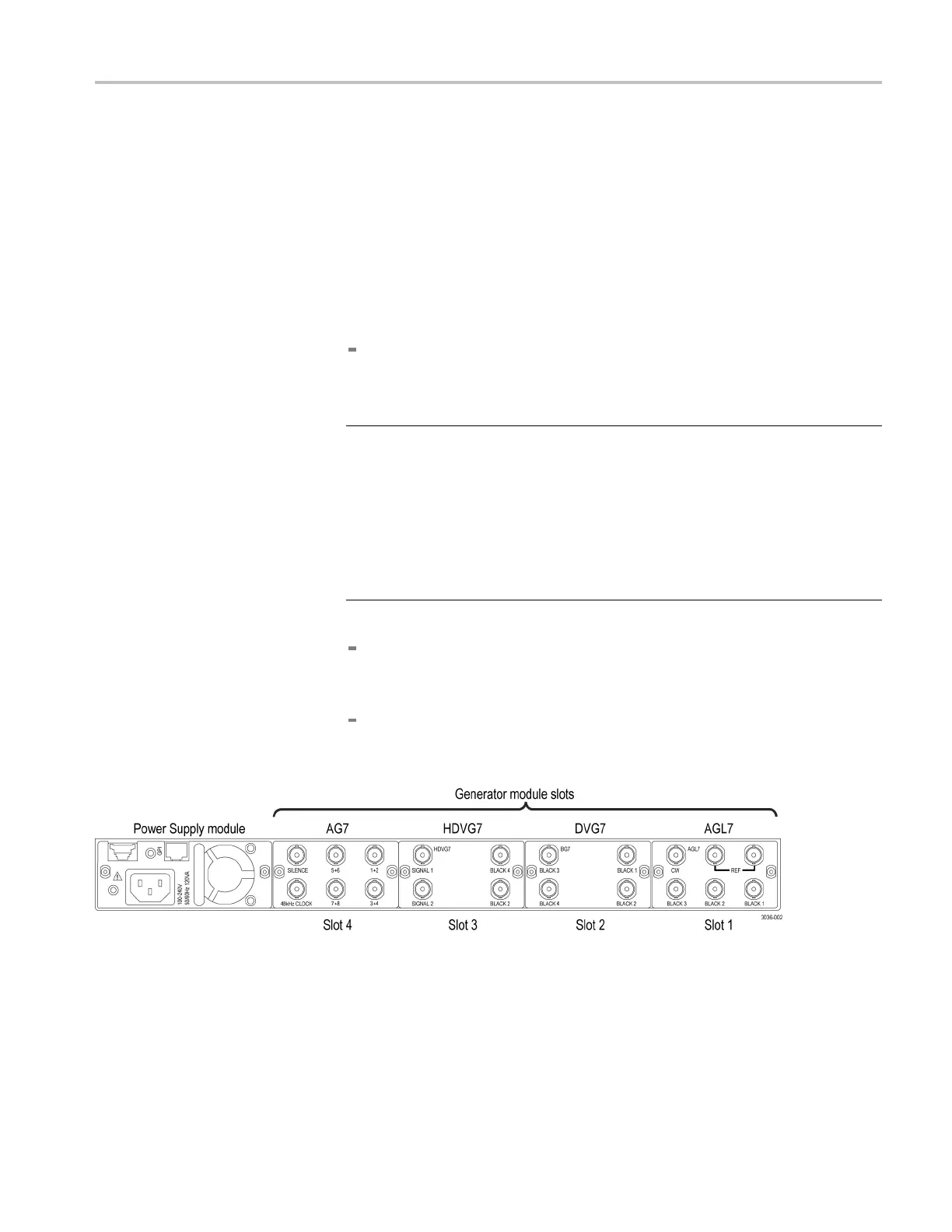

Figure 1 -1: TG8000 slot numbering
TG8000 Multiformat Test Signal Generator Service Manual 1–11
