SDI7 module troubleshooting
Verify that Option 3G is
enabled
If your SDI7 m od
ule has Option 3G enabled, an option key was entered in order to
enable the 3G software option. Each option key applies to only one SDI7 module.
Youneedtoentertheoptionkeyonlyonce. After the option key is entered, the
option key stays with that SDI7 module, enabling Option 3G even when the
module is moved to another TG8000 mainframe or to a TG700 mainframe that is
running software version 5.6 or a bove.
Perform the following steps to v erify that Option 3G is enabled on your SDI7
module:

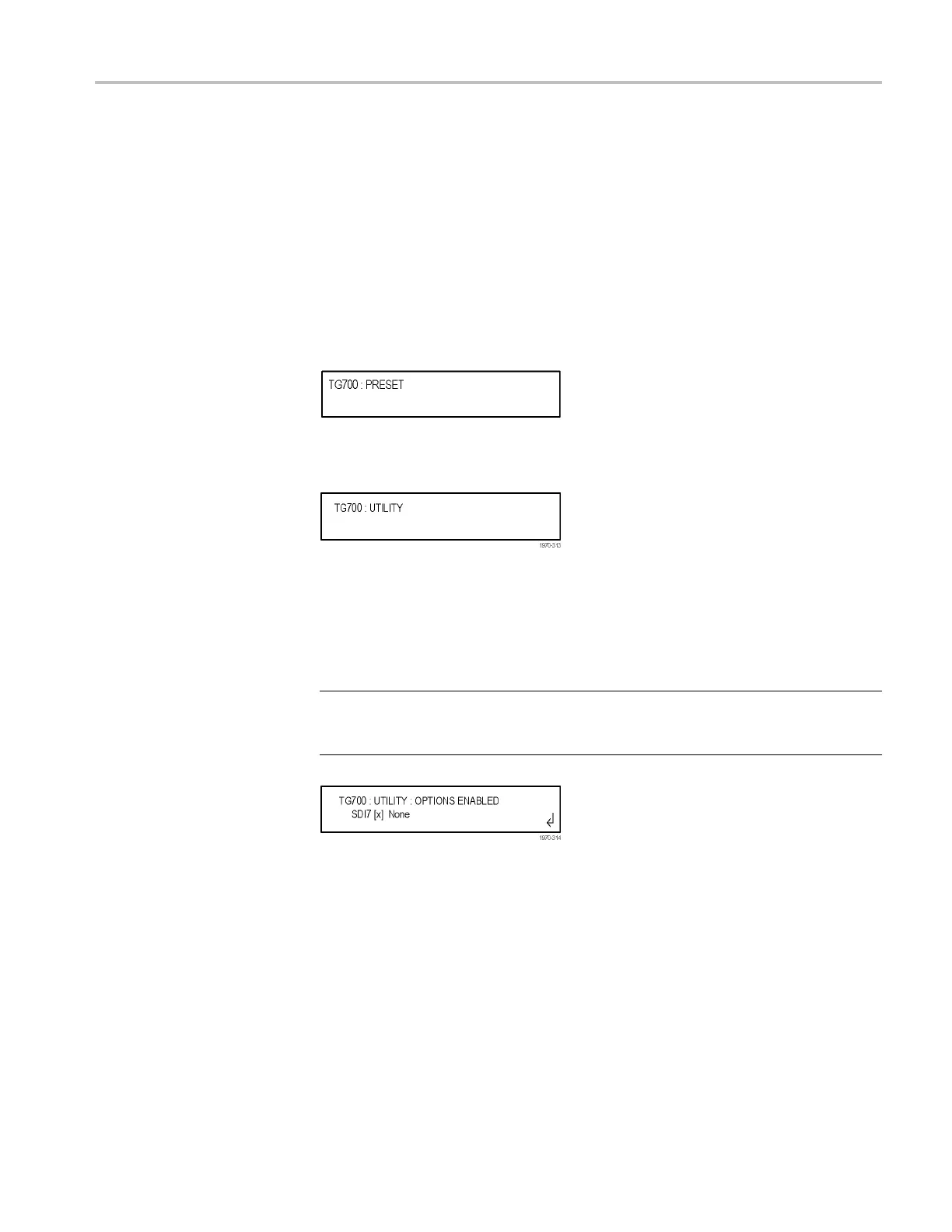

1. Press the front-panel MODULE button until the m ainframe main menu is
displayed as shown below.
2. Press the up (▲)ordown(▼) arrow button until TG8000 : UTILITY is
displayed, and then press the ENTER button.
3. Press the up (▲)ordown(▼) arrow button until TG8000 : UTILITY :
OPTIONS ENABLED is displayed. The bottom line of the display will
list the slot number in which the SDI7 module is installed and will indicate
whether option 3G i s enabled: None is displayed when the option is not
enabled, 3G is displayed when the option is enabled.
NOT
E. If more than one SDI7 module is installed in the mainframe, use the left
(◄)orright(►) arrow button to select the desired module, and then press the
ENTER button.
4. Press the BACK button to exit the UTILITY submenu. This returns to the
mainframe main menu.
TG8000 Multiformat Test Signal Generator Service Manual 14–25
