Connector J5
External power connector for DVCC
Set jumper JP3 to "ext"
IMPORTANT NOTE:
Rev1.0 of the board does not have
connection from pin 4 of BOOTST to
pin 64 of MCU. To use BSL, these pins
should be connected by a wire.
Jumper JP2
Open to disconnect LED
D1
LED connected to P1.0
Orient Pin 1 of MSP430 device
Jumper JP4
For F524x devices, close.
For F522x, F523x, and F525x devices,
close only if one power supply is used
for VCC and DVIO, and if VCC is not
higher then 1.98 V. Otherwise, supply
DVIO over J6.
Do not close if VCC > 1.98 V, as it may
damage the chip.
Connector J6
External power connector
to supply DVIO
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Jumper JP1
Open to measure current
www.ti.com
MSP-TS430RGC64C
105
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

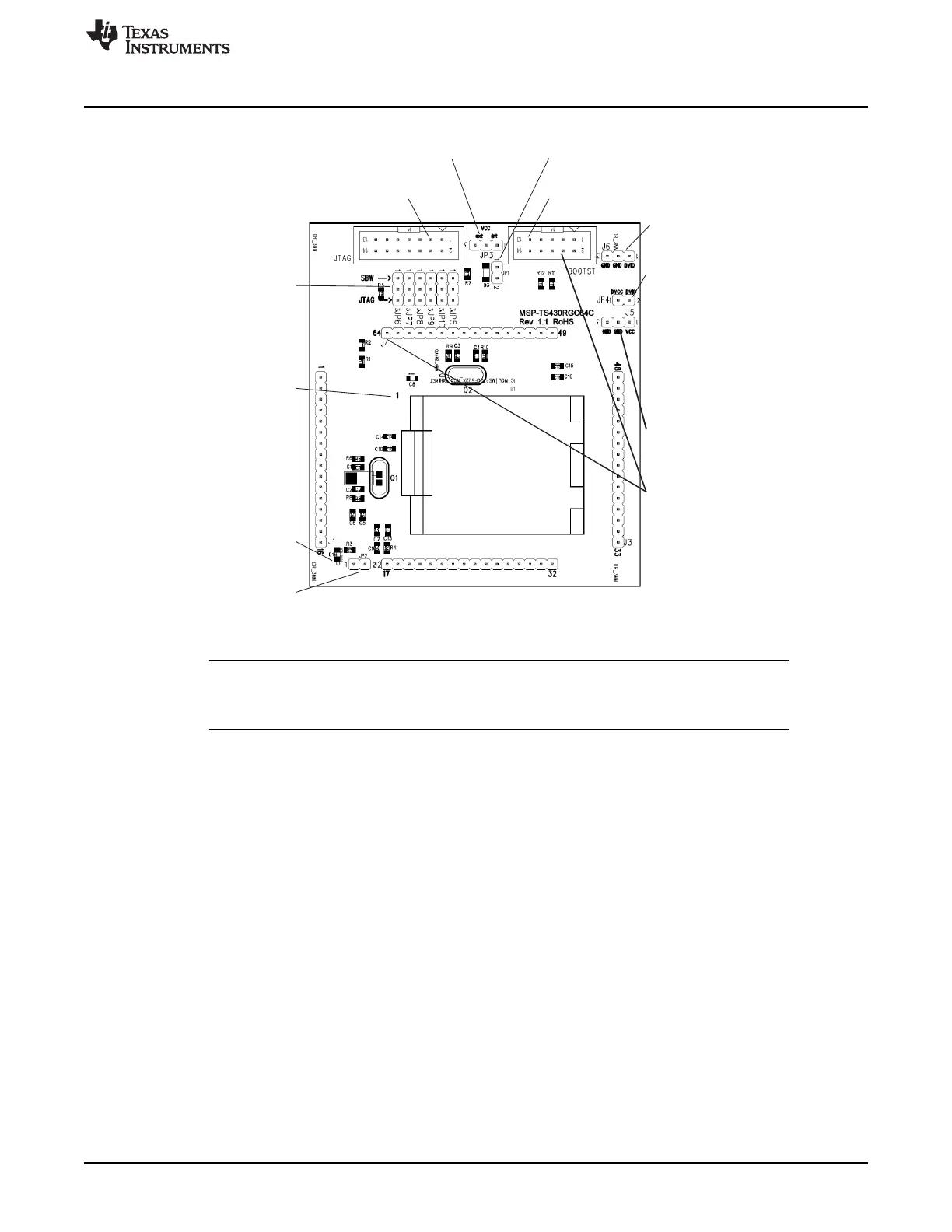

Figure B-49. MSP-TS430RGC64C Target Socket Module, PCB
NOTE: For bootloader use, the BSL connector and only one of the resistors R11 or R12 must be
populated. If the board is supplied internally, R11 (0 Ω) must be assembled. If the board is
supplied externally, R12 (0 Ω) must be assembled, and R11 must be removed.
