Connector J2
External power connector
Jumper JP3 to "ext"
Orient Pin 1 of
MSP device
Jumpers JP3 JP8
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
through
D1 D3
LEDs connected to
P1.0 through P1.2
through
Jumpers JP9 JP11
Open to disconnect LEDs
through
Connector JTAG
For JTAG Tool
Connector BSL
For Bootloader Tool
Jumper J1
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Jumpers JP1 and JP2
Open to measure current
MSP-TS430PN80B www.ti.com
118
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

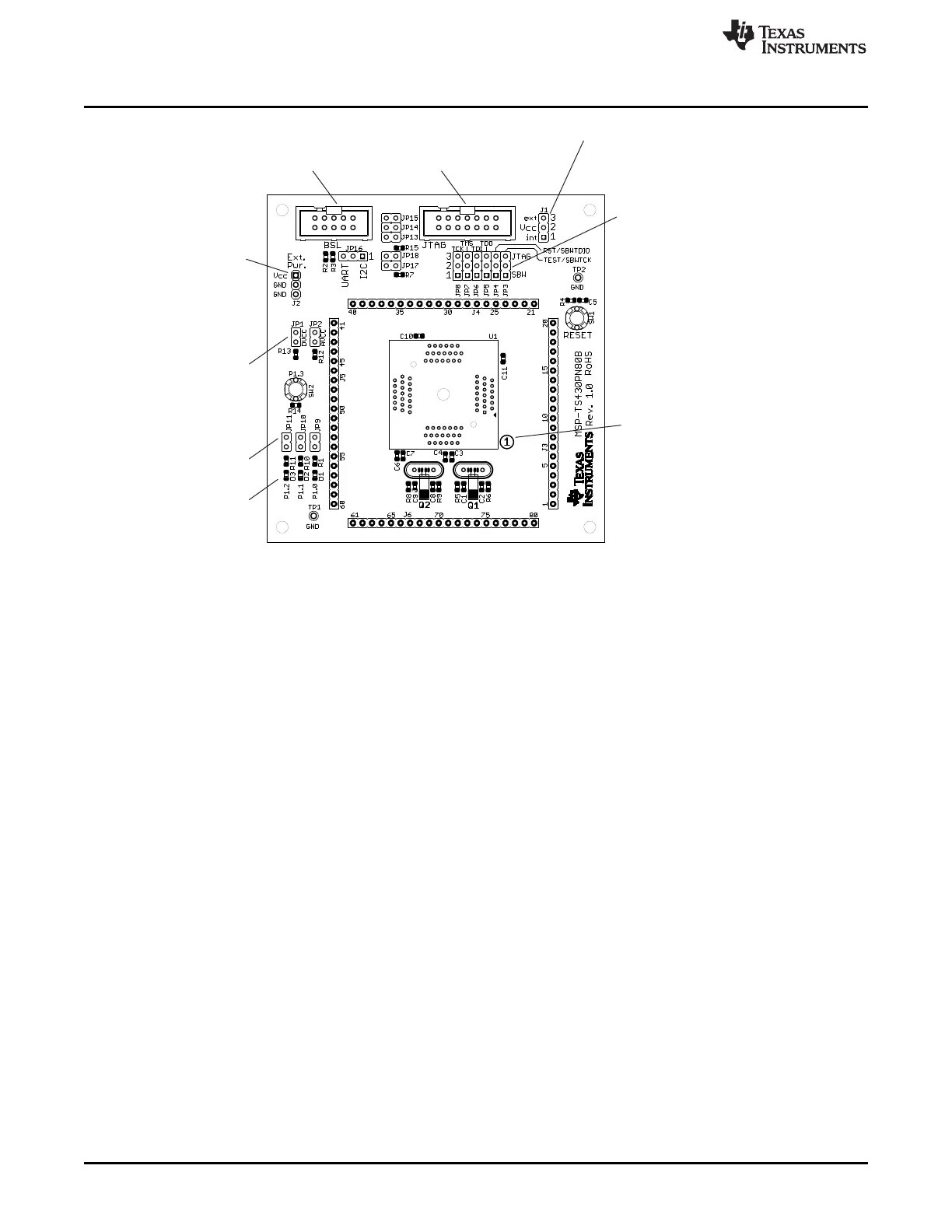

Figure B-57. MSP-TS430PN80B Target Socket Module, PCB
