Texas Instruments MSP430

Jumper J4
Open to disconnect LED
Orient Pin 1 of
MSP430 device
Jumper J5
Open to measure current
Connector J3
External power connector
Remove R8 and jumper R9
D1
LED connected to P1.0
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
MSP-TS430DW28 www.ti.com
56
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

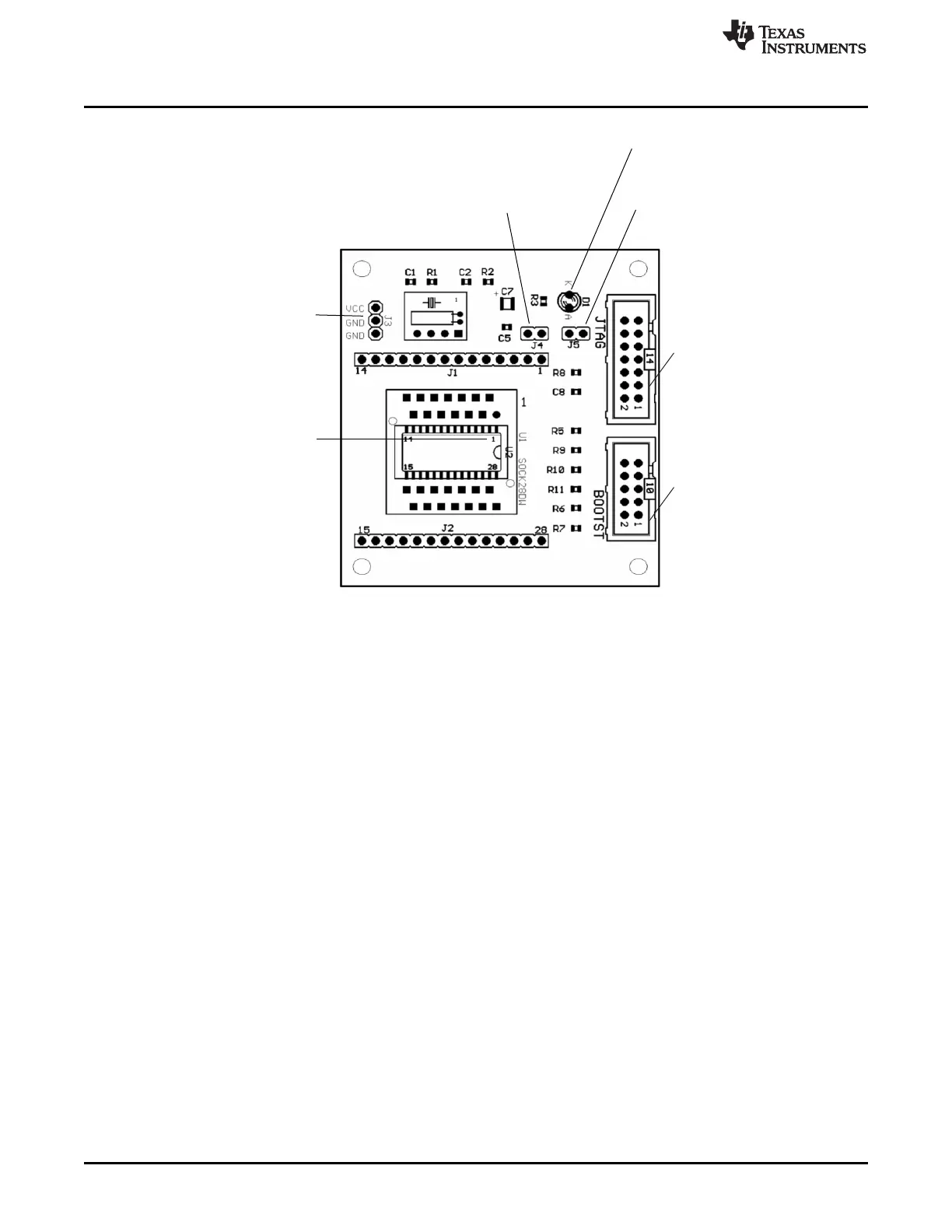

Figure B-17. MSP-TS430DW28 Target Socket Module, PCB
