Jumper JP2
Open to measure current
Jumper JP1
Open to disconnect LED
D1
LED connected to P5.1
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Jumpers JP4 to JP9
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Orient Pin 1 of MSP430 device
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
Connector J5
External power connector
Jumper JP3 to "ext"
MSP-TS430PM64A
www.ti.com
92
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

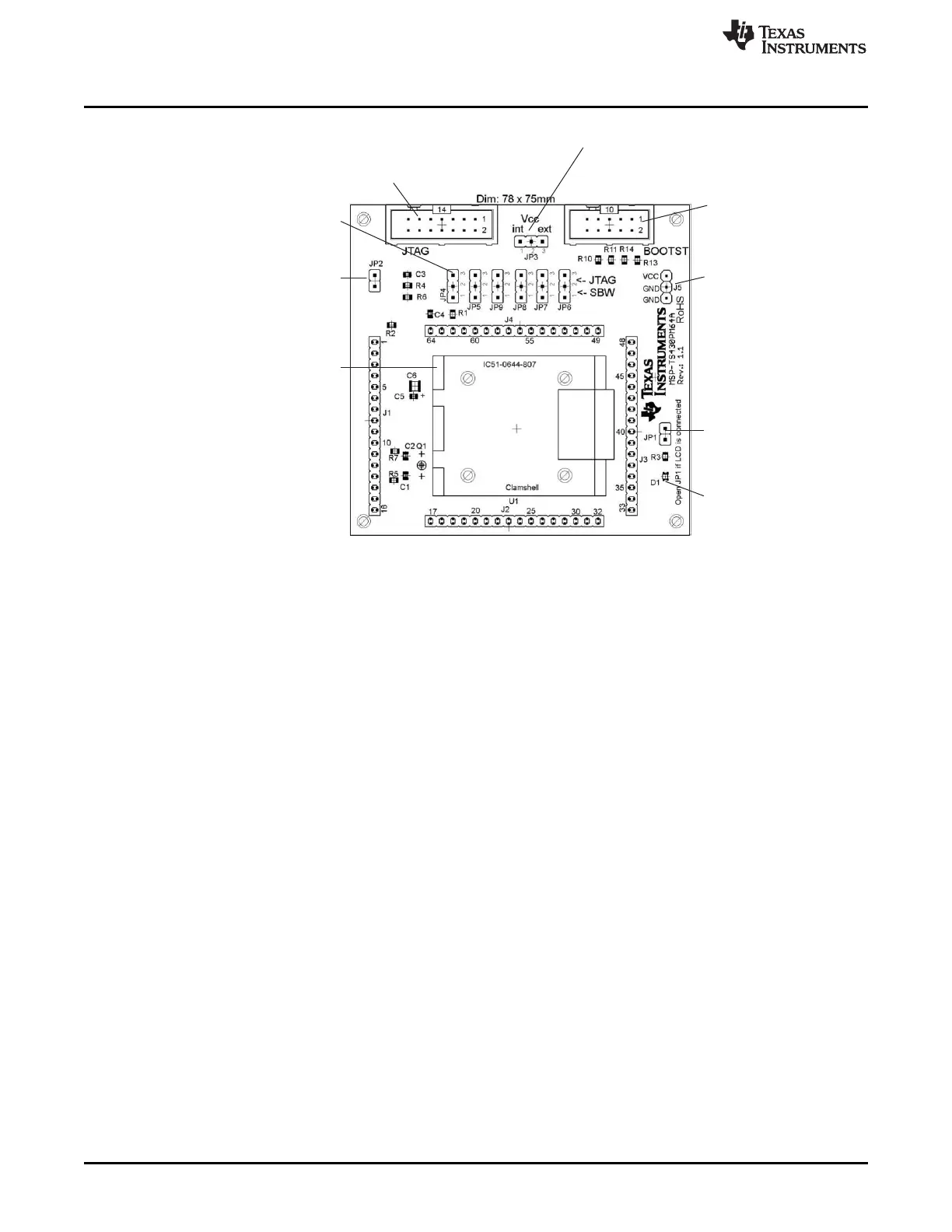

Figure B-41. MSP-TS430PM64A Target Socket Module, PCB
