Jumper JP3
1-2 (int): Power supply from JTAG debug interface
2-3 (ext): External power supply
Connector J5
External power connector
Jumper JP3 to "ext"
USB Connector
Button S3
BSL invoke
Jumper JP4
Close for USB bus powered device
Jumper JP2
Open to disconnect LED
D1
LED connected to P1.0
Jumper JP1
Open to measure current
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Connector JTAG
For JTAG Tool
Orient Pin 1 of MSP430 device
www.ti.com
MSP-TS430PN80USB
121
SLAU278YMay 2009Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

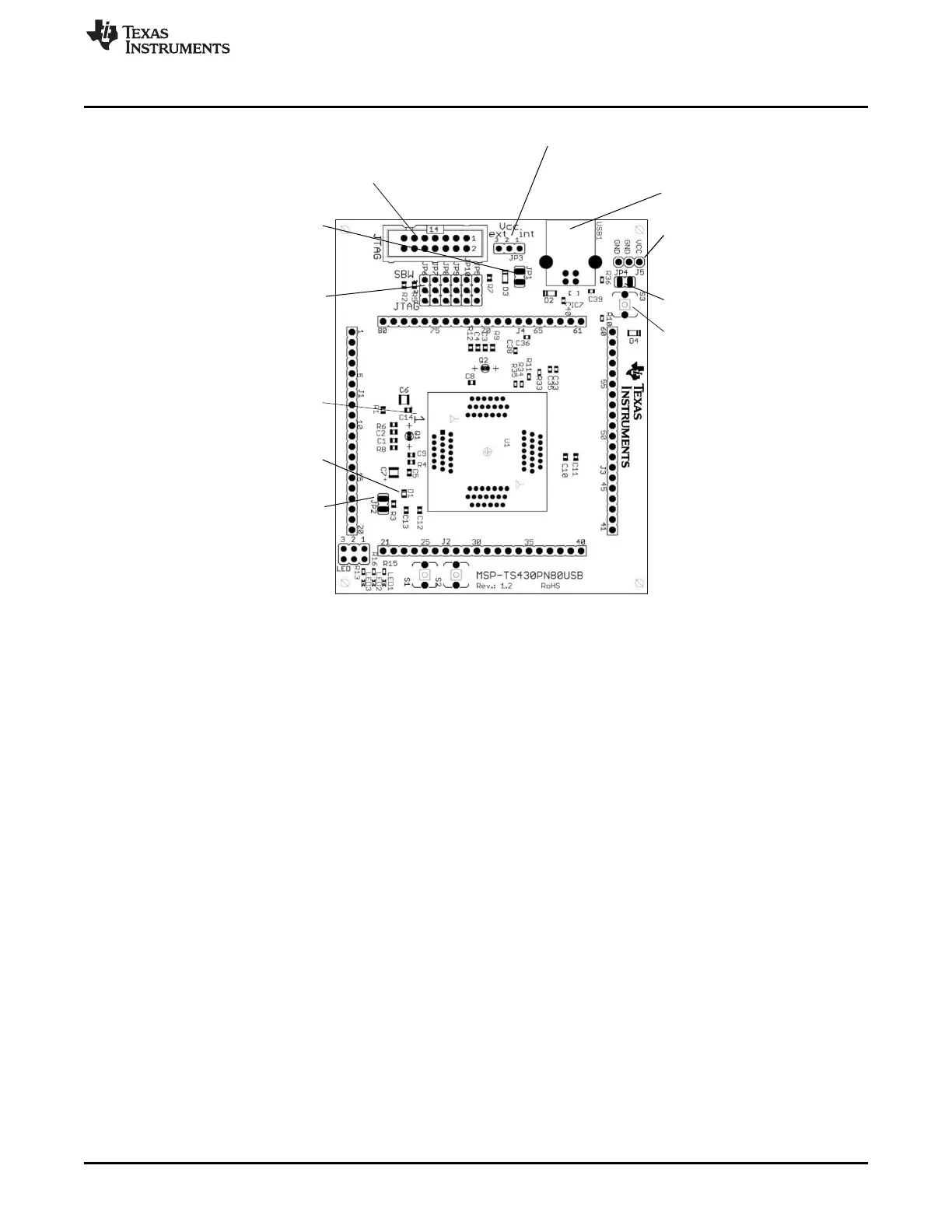

Figure B-59. MSP-TS430PN80USB Target Socket Module, PCB
