Connector JTAG
For JTAG tool
Connector BSL
For bootloader tool
Orient Pin 1 of MSP430 device
Jumper J1
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector J2
External power connector
Jumper J1 to “ext”
Jumpers JP3 to JP8
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
www.ti.com
MSP-TS430RGE24A
53
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

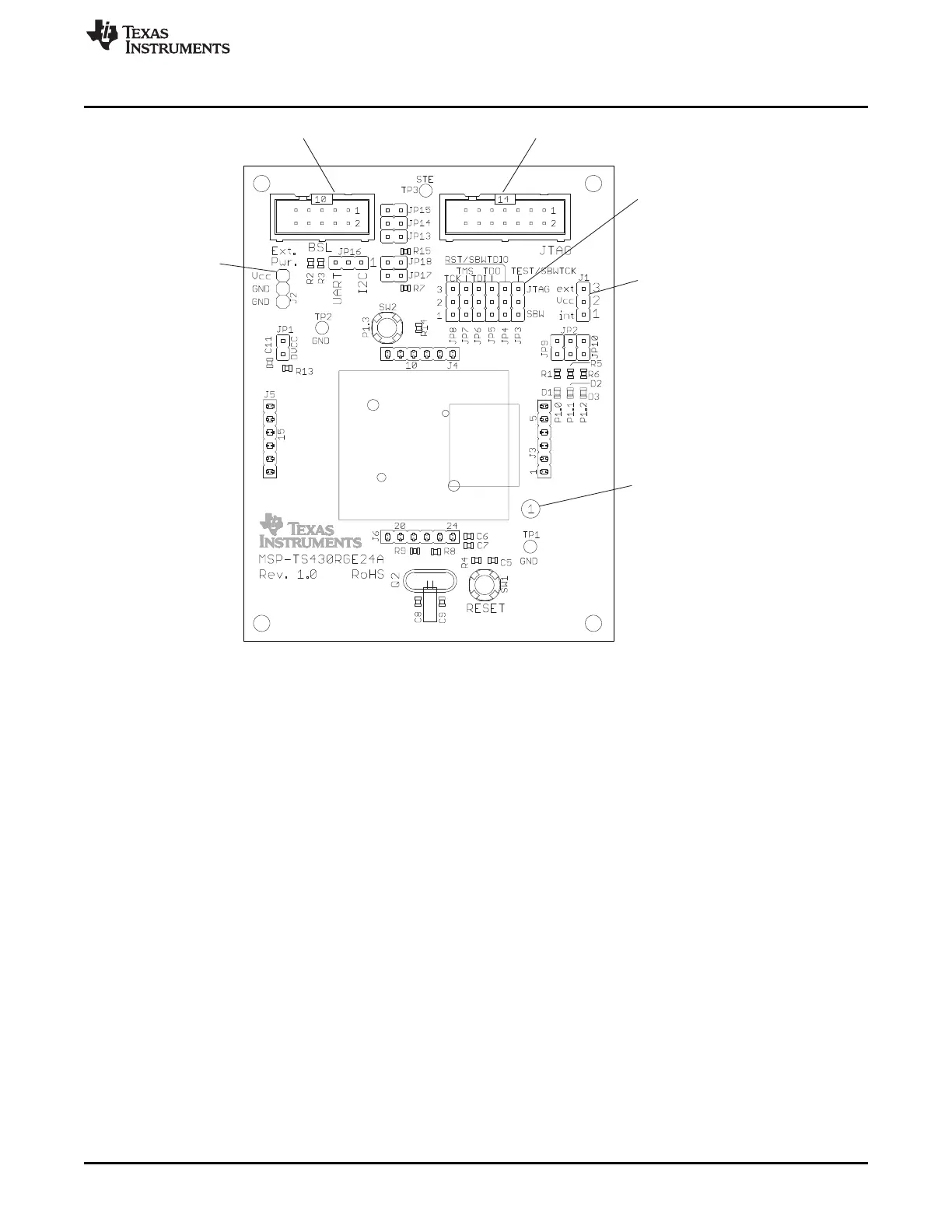

Figure B-15. MSP-TS430RGE24A Target Socket Module, PCB
