Connector J5
External power connector
Jumper JP3 to "ext"
Jumper JP1
Open to measure current
Orient Pin 1 of MSP430 device
Jumpers JP5 to JP10
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
JP11, JP12, JP13
Connect 1-2 to connect
AUXVCCx with DVCC
or drive AUXVCCx externally
D1
LED connected to P1.0
Jumper JP2
Open to disconnect LED
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
www.ti.com
MSP-TS430PZ100B
131
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

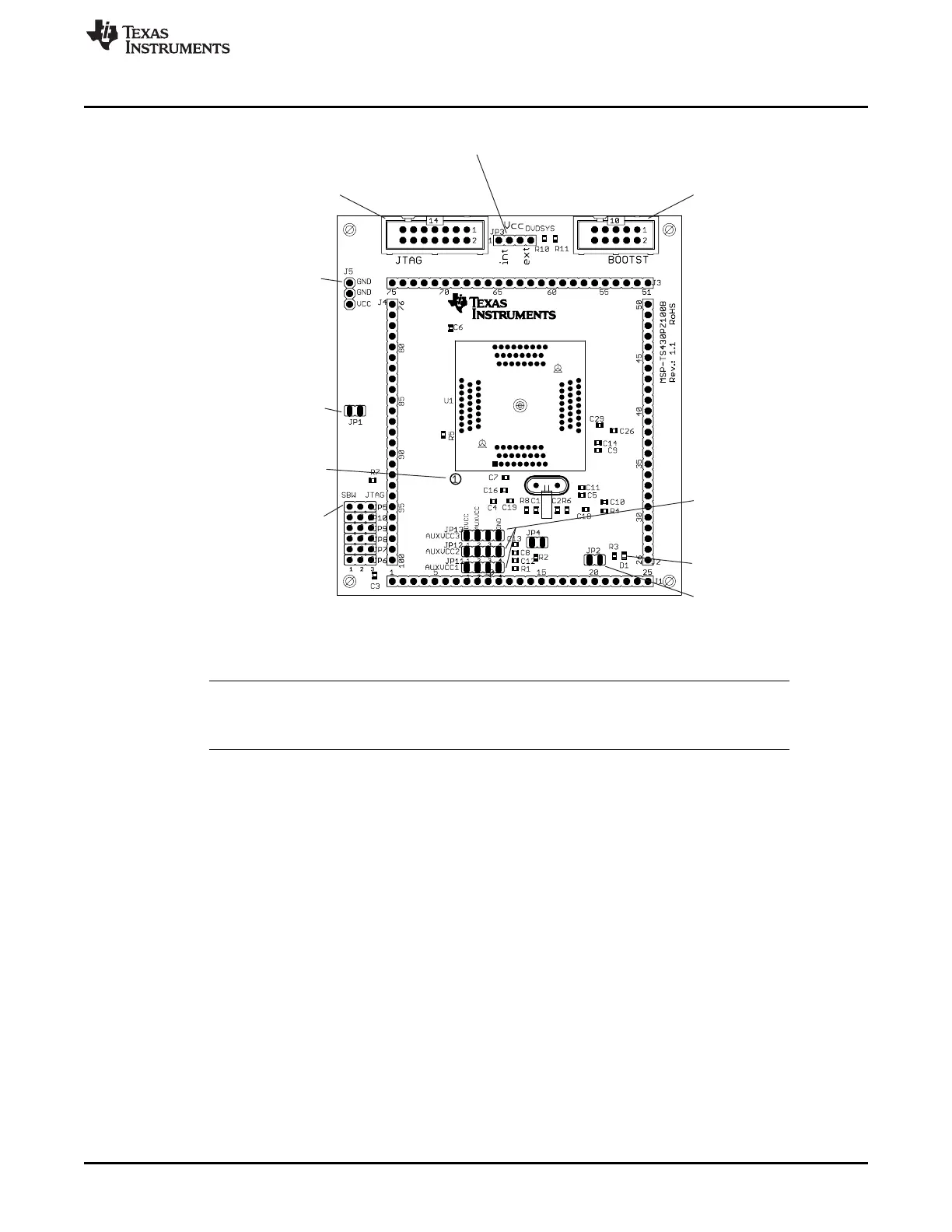

Figure B-65. MSP-TS430PZ100B Target Socket Module, PCB
NOTE: For bootloader use, the BSL connector and only one of the resistors R10 or R11 must be
populated. If the board is supplied internally, R11 (0 Ω) must be assembled. If the board is
supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed.
