Jumper J4
Open to disconnect LED
D1
LED connected to P1.2
Orient Pin 1 of MSP430 device
14-pin connector for debugging
in Spy-Bi-Wire mode only
(4-Wire JTAG not available)
Jumper J6
Open to measure current
Jumper J5
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector J3
External power connector
Jumper J5 to “ext”
MSP-TS430D8
www.ti.com
34
SLAU278YMay 2009Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

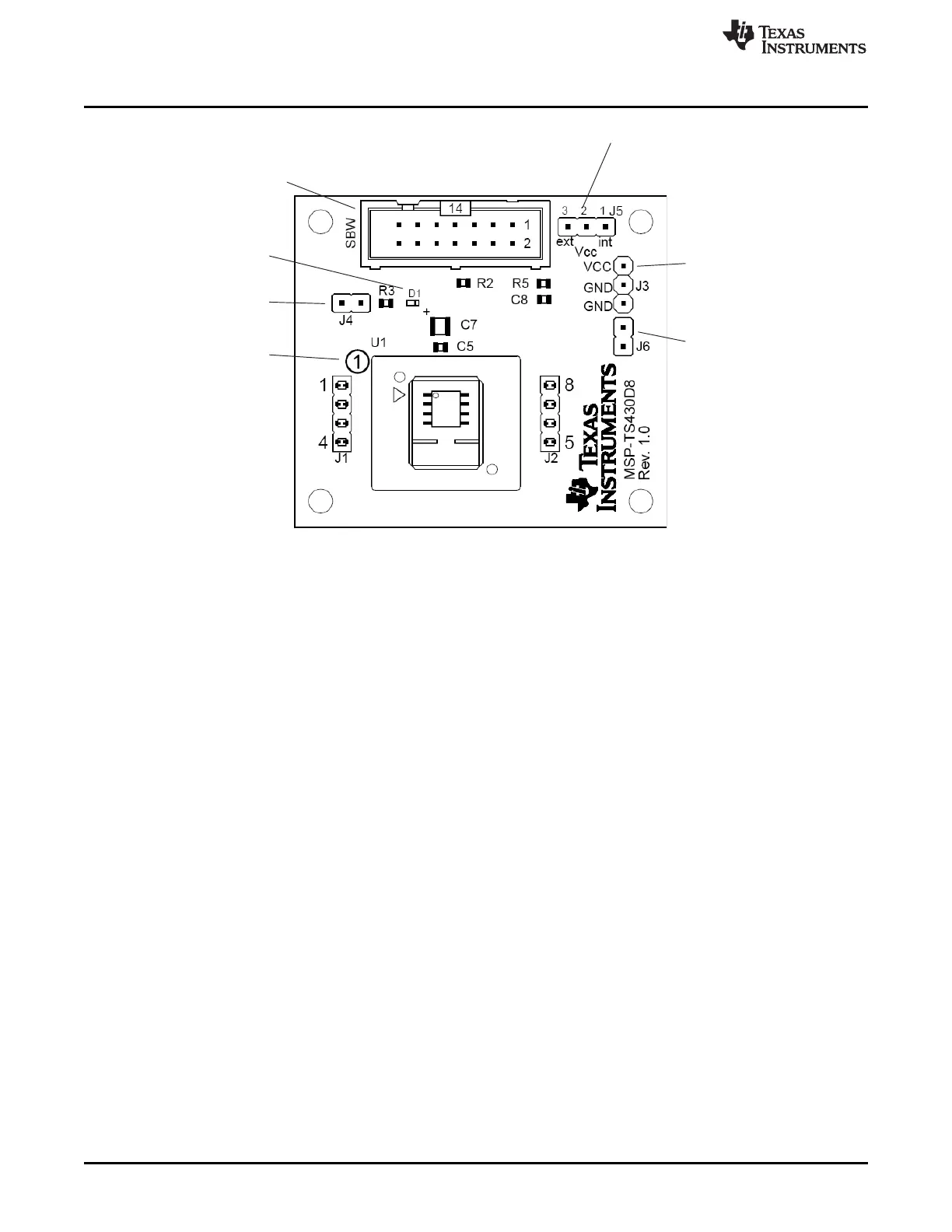

Figure B-2. MSP-TS430D8 Target Socket Module, PCB
