Orient pin 1 of MSP430 device
D1
LED connected to P1.0
Connector J3
External power connector
Jumper JP1 to "ext"
Jumper JP3
Open to disconnect LED
Jumper JP2
Open to measure current
Jumpers JP4 to JP9
Close 1-2 to debug in Spy-Bi-Wire mode
Close 2-3 to debug in 4-wire JTAG mode
Jumper JP1
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
MSP-TS430DA38
www.ti.com
68
SLAU278Y–May 2009–Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

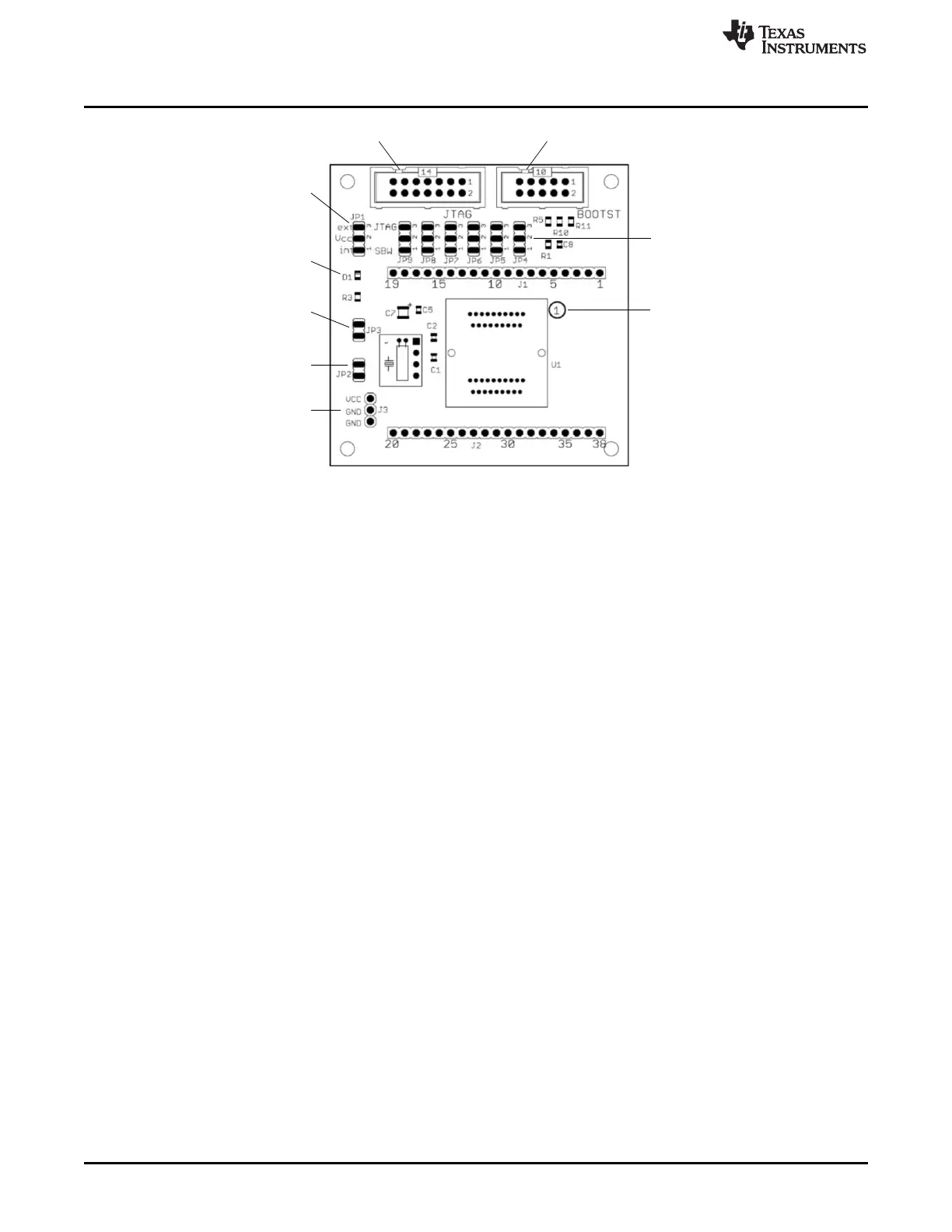

Figure B-25. MSP-TS430DA38 Target Socket Module, PCB
