Jumper JP1
Open to measure current
Jumper JP2
Open to disconnect LED
D1
LED connected to P5.1
Jumper JP3
1-2 (int): Power supply from JTAG interface
2-3 (ext): External power supply
Orient Pin 1 of
MSP430 Device
Connector J5
External power connector
Jumper JP3 to "ext"
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
MSP-TS430PZ100A
www.ti.com
128
SLAU278YMay 2009Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

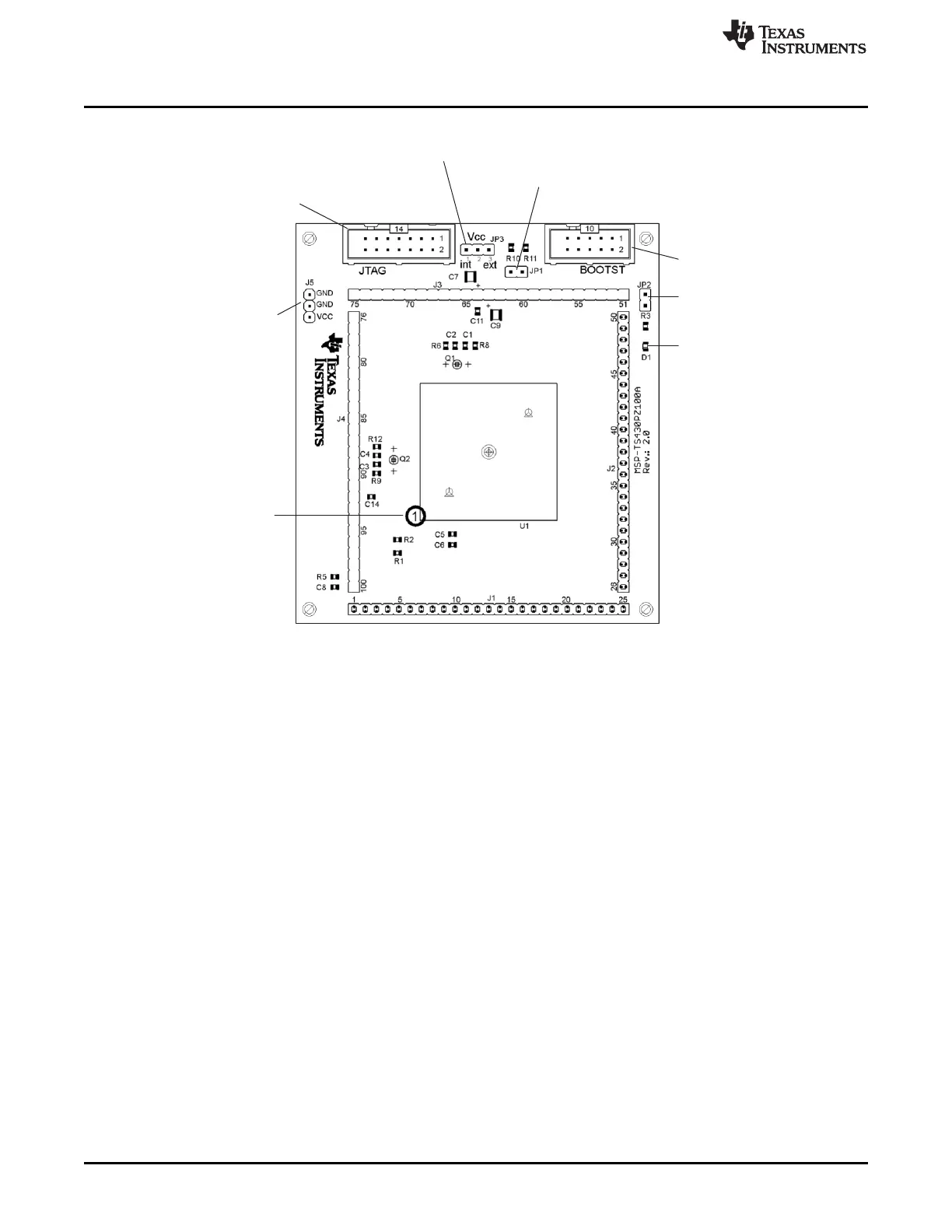

Figure B-63. MSP-TS430PZ100A Target Socket Module, PCB
