Connector J5
External power connection
Remove R8 and jumper R9
D1
LED connected to pin 12
Jumper J6
Open to disconnect LED
Jumper J7
Open to measure current
Orient Pin 1 of
MSP430 device
Connector JTAG
For JTAG Tool
Connector BOOTST
For Bootloader Tool
www.ti.com
MSP-TS430PM64
89
SLAU278YMay 2009Revised March 2016
Submit Documentation Feedback
Copyright © 2009–2016, Texas Instruments Incorporated
Hardware

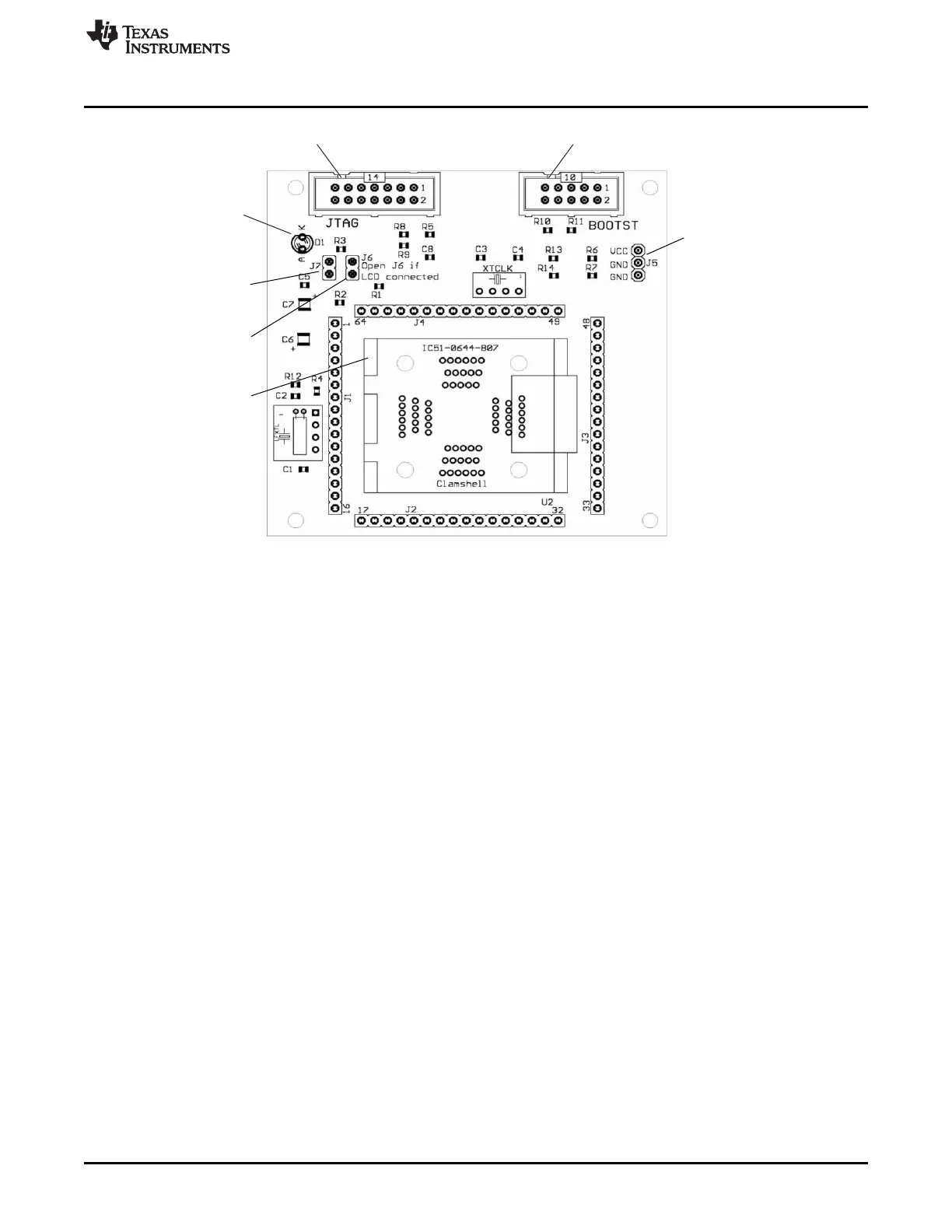

Figure B-39. MSP-TS430PM64 Target Socket Module, PCB
