Textron Jacobsen 600 Series User Manual

HYDRAULICS
8E-24
3. The following disassembly steps include the
removal of bearings. If bearings are not to be
removed, and only a seal kit is to be installed,
omit Steps 10 and 13.

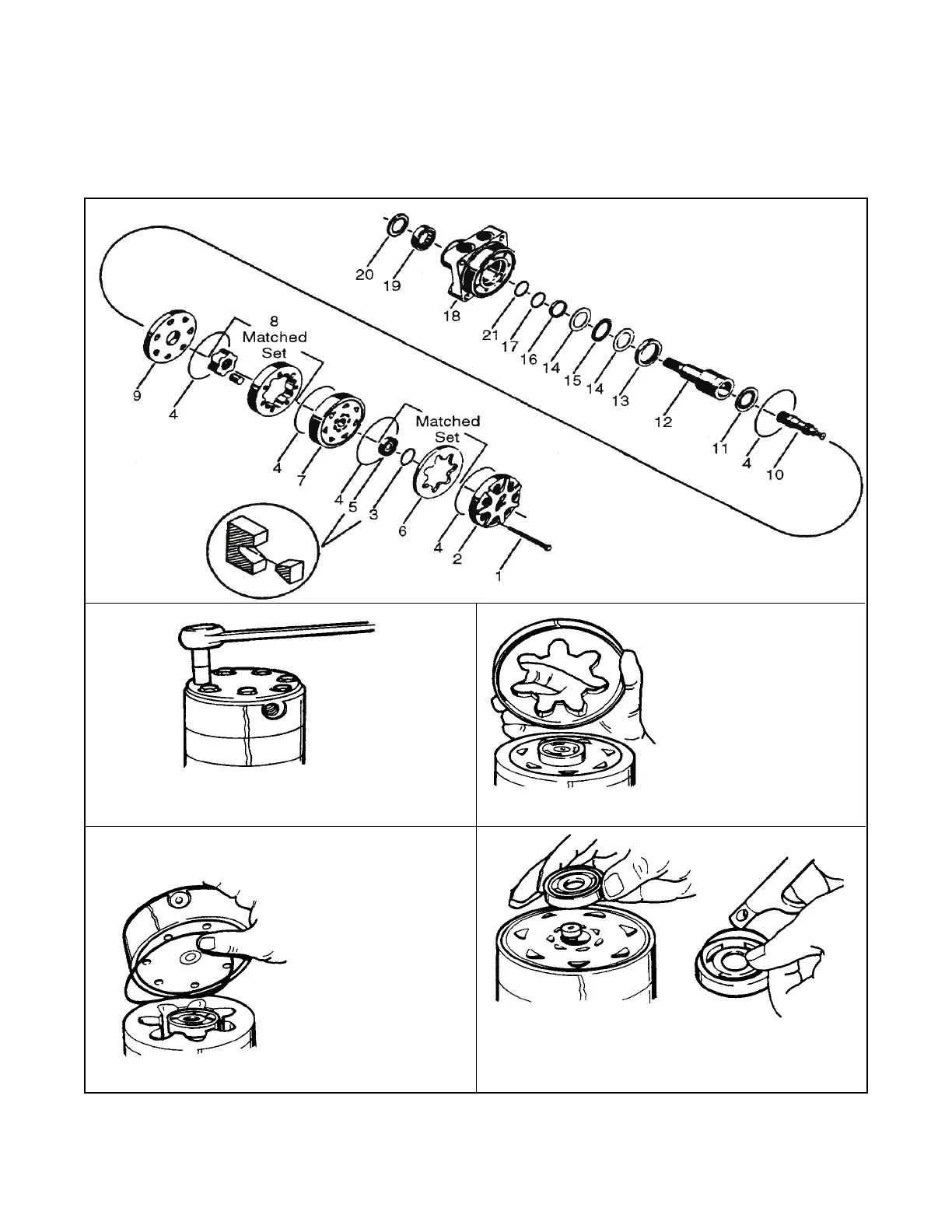

Figure 8E-6. Traction Motor Disassembly (1 of 4)
Step 1
Remove special housing bolts (1).
Step 2
Remove end cover (2).
Step 3
Remove commutator ring (6).
Step 4
Remove commutator (5) and seal (3)
from commutator.
