HYDRAULICS
8E-25

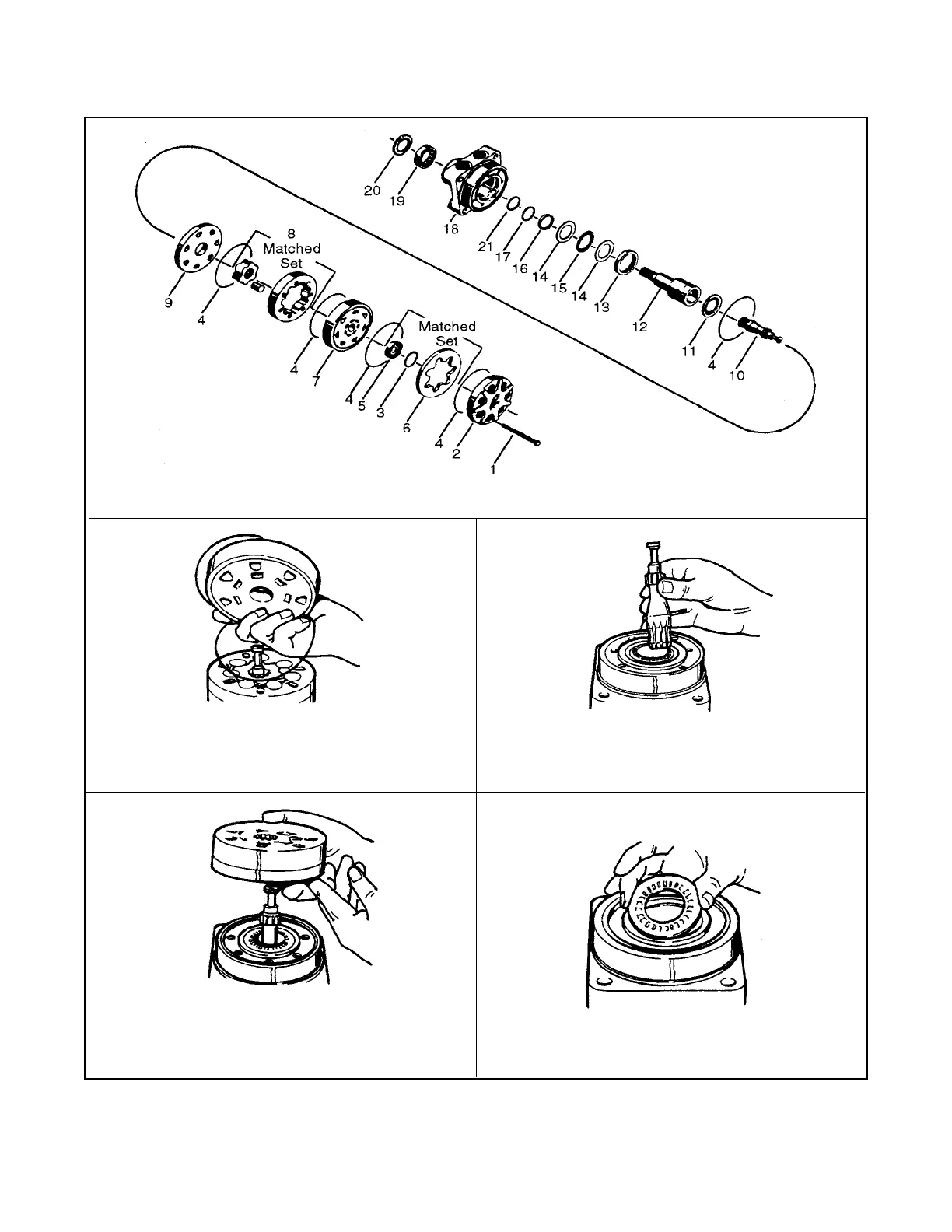

Figure 8E-7. Traction Motor Disassembly (2 of 4)
Step 5
Remove wear manifold (7).
Step 6
Remove rotor (8) as a set.
NOTE: Do not disassemble.
Step 7
Match mark drive link (10) with coupling
shaft (12); then remove drive link (10).
Step 8
Remove thrust bearing (11).
