HYDRAULICS

8E-26

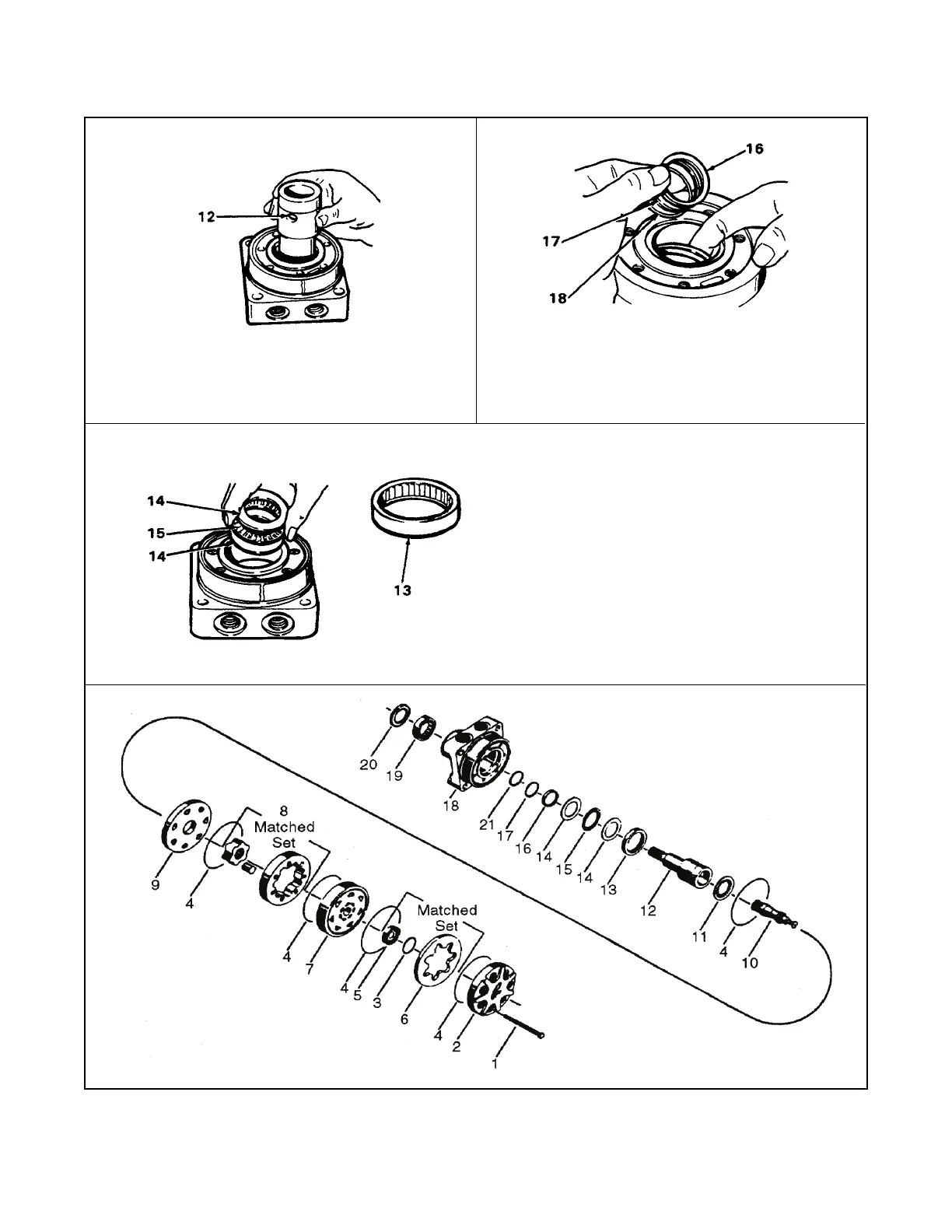

Figure 8E-8. Traction Motor Disassembly (3 of 4)

Step 9

Remove coupling shaft (12).

Step 11

Remove seal (16) and two backup washers

(17 and 21), working them around thrust

washers and thrust bearing.

Step 10

NOTE: To remove thrust bearing (15)

and thrust washers (14), bearing (13)

must be removed first.

CAUTION: If bearing (13) is removed, a

NEW bearing must be installed.

Remove bearing (13).

Remove thrust bearing (15) and thrust

washers (14).
