HYDRAULICS
8E-27

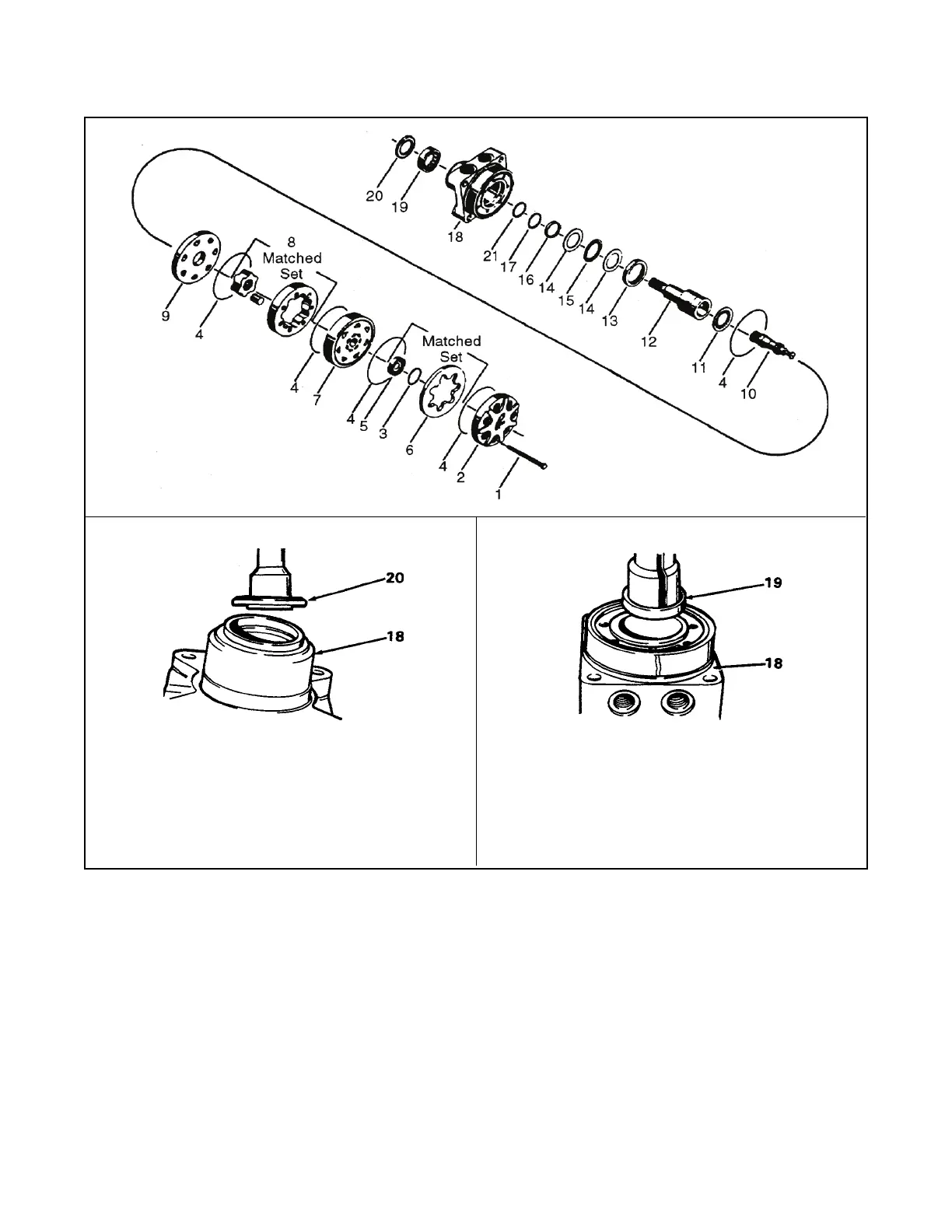

Figure 8E-9. Traction Motor Disassembly (4 of 4)
Step 12
Turn housing around. Remove shaft seal (20).
Step 13
CAUTION: If bearing is removed, it must
be replaced with a new bearing.
Remove bearing (19) using a blind hole
puller.
