ENGINE
3D-12

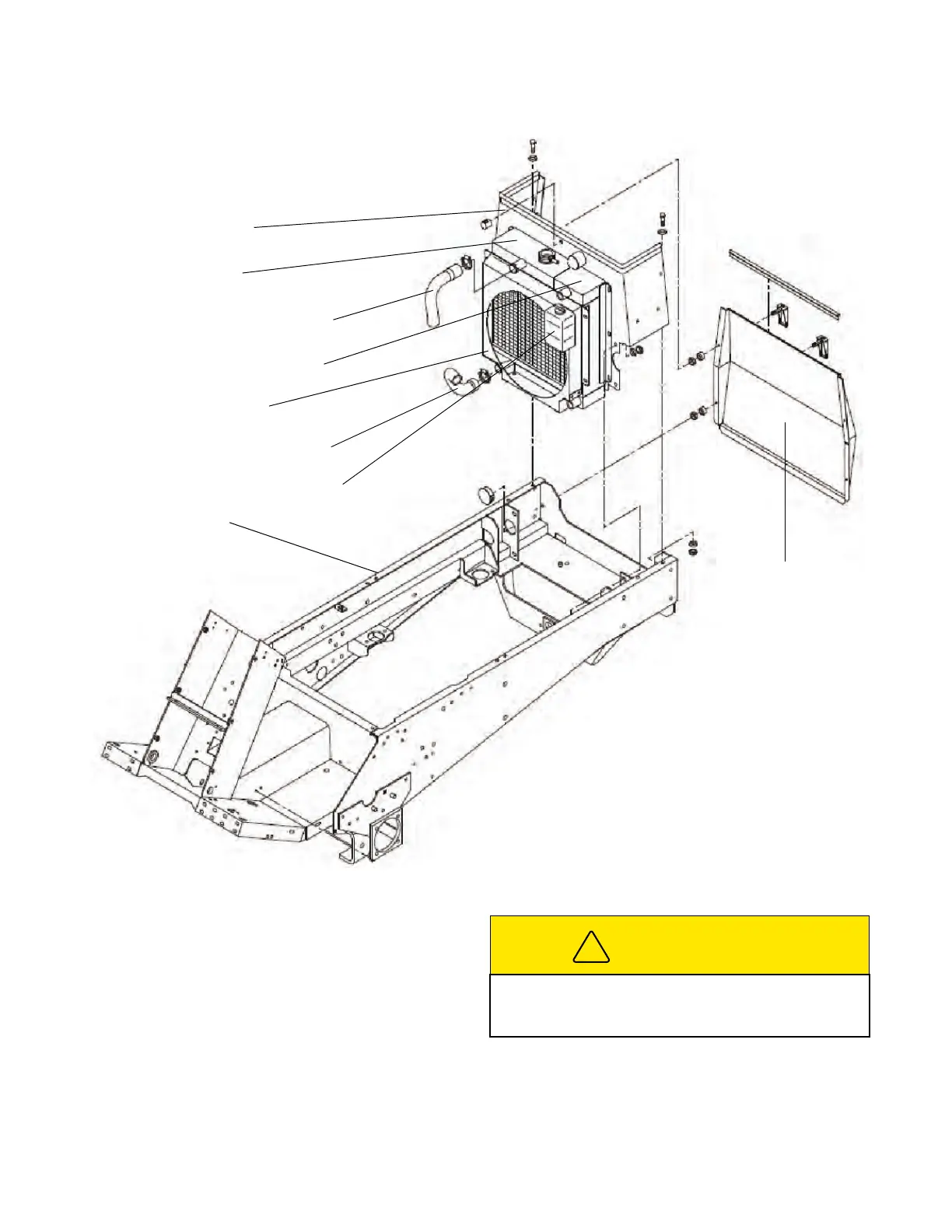

Figure 3D-9. Radiator Mounting
Removal
1. Shut down the engine and remove the ignition
key.
Bulkhead
Radiator
Upper Radiator Hose
Fan Shroud
Lower Radiator Hose
Hydraulic Oil Cooler
Coolant Recovery Tank
Rear Cover
Frame
CAUTION
Allow the engine coolant to completely cool before
removing the radiator cap. Hot coolant sprayed from
the cap can cause serious personal injury.
!
