STEERING
6C-11

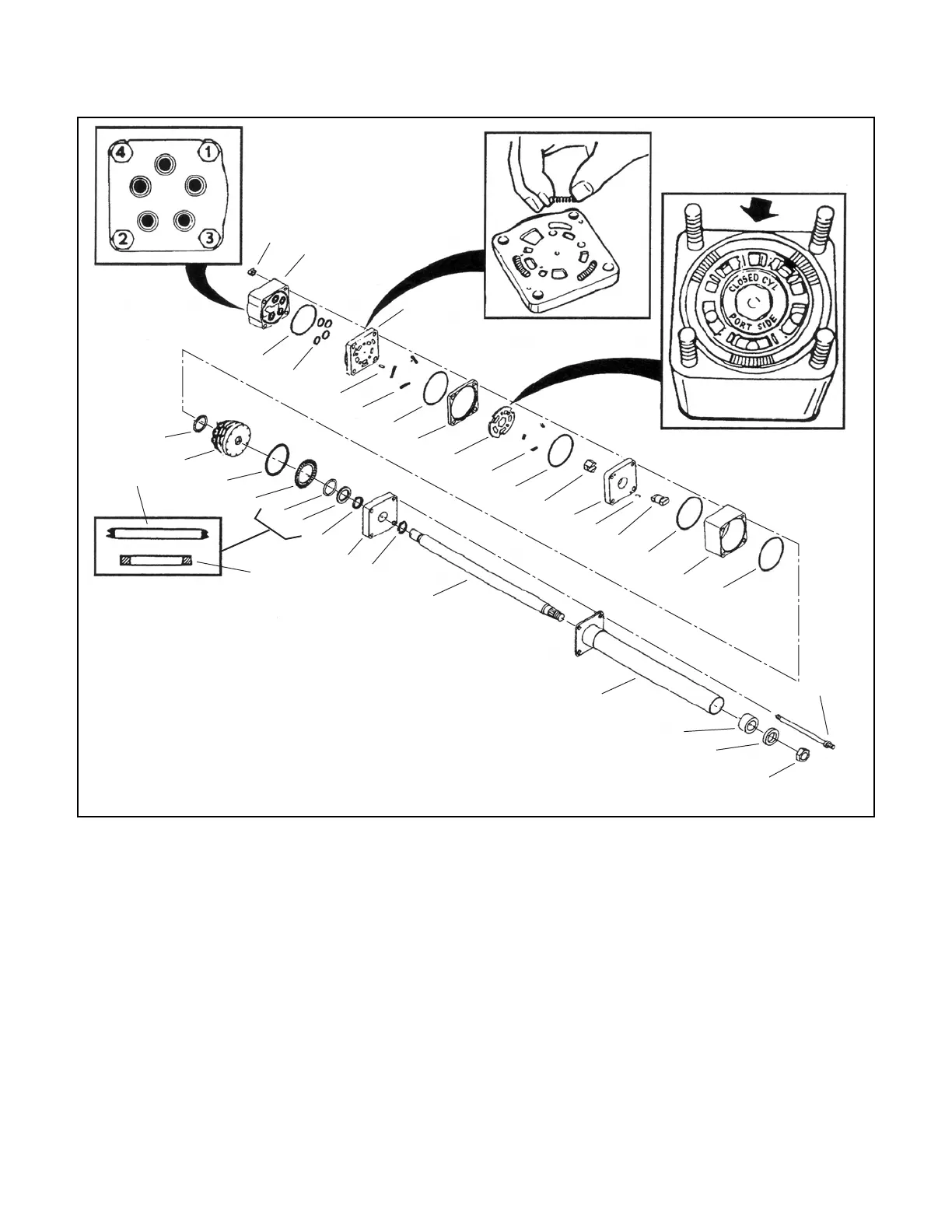

Figure 6C-6. Steering Valve Assembly
22.Place the isolation manifold (13) on the metering
ring (15) with the alignment pin holes up. Install
the alignment pins (12).
23.Install the three 0.5 in (13 mm) springs (10) into
the insolation manifold (13) and install the valve
ring (8).
24.Install the valve plate (9) as shown (closed cylin-
der up) in the valve ring (8), aligning the spring
slots with the springs. Install the seal ring (3).
25.Place the three 0.75 in (19.05 mm) springs (7) in
the port manifold (6) as shown.
26.Carefully place the port manifold (6), springs
down, onto the valve ring (8), see Figure 6C-7.
1
2
3
4
5
6
7
3
8
9
10
3
11
13
14
3
15
3
16
17
18
19
20
21
22
23
24
26
27
28
29
25
Steering
Wheel Nut
12
20
21
STEP 5
STEP 30
STEP 25
STEP 24
To Next Page
