HYDROSTATIC POWER TRAIN
4252490-Rev A 5-29
5

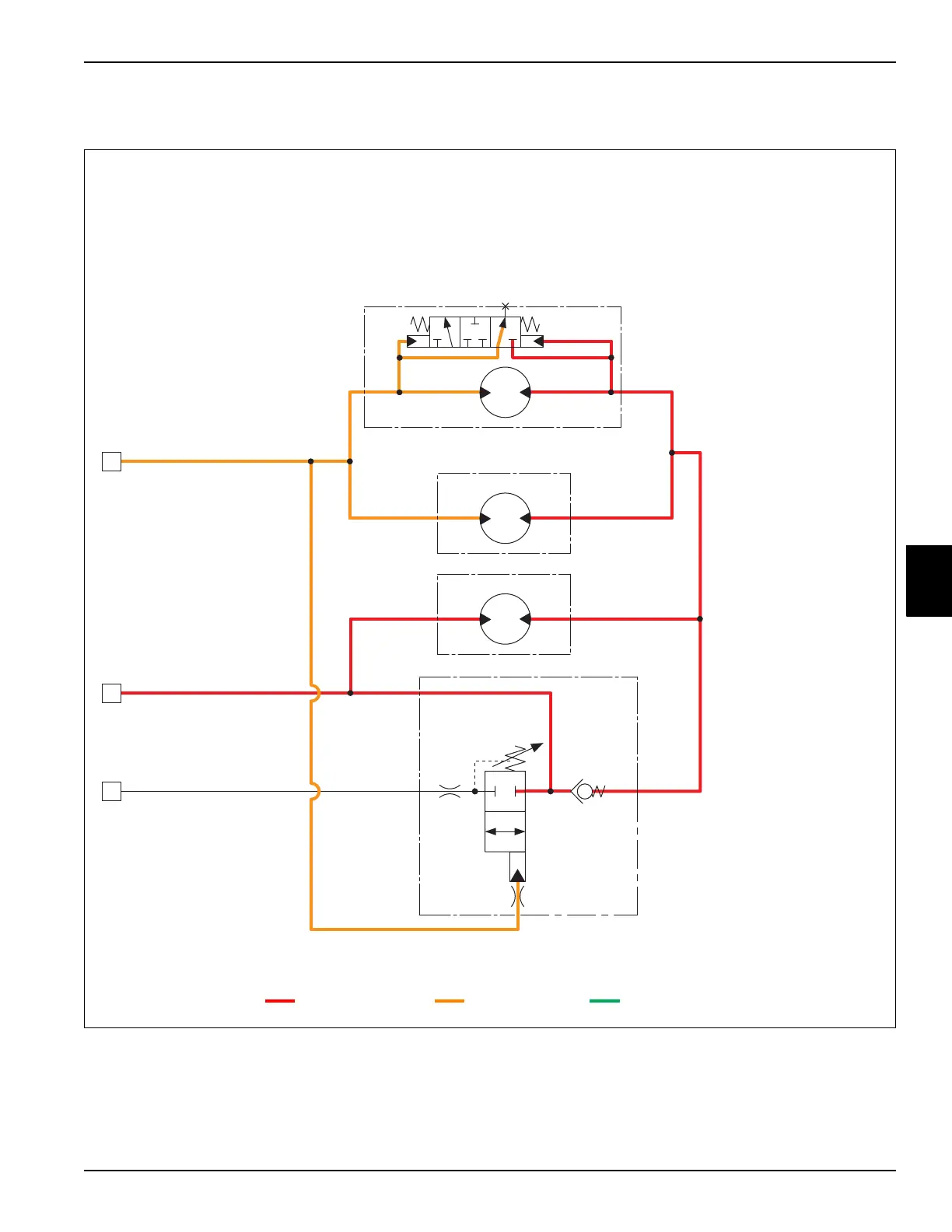

Traction Circuit—Reverse Schematic (3WD Models),
Continued
Figure 5-14
3 Charge Pressure Oil from Traction Pump (Port A)
4 Operating Pressure Oil from Traction Pump (Port B)
5 Return Oil to Hydraulic Tank
TN3081
Operating Pressure Oil Charge Pressure Oil
Inlet or Drain Oil
10.37
ci
Left Front
Wheel Motor
Check
Valve
Shuttle Valve
3
4
5
Rear Wheel
Motor
Right Front
Wheel Motor
10.37
ci
20.75
ci
0.040 in.
RW2
DR
Flushing
Valve
1.3 gpm
0.020 in.
RW1
PP
