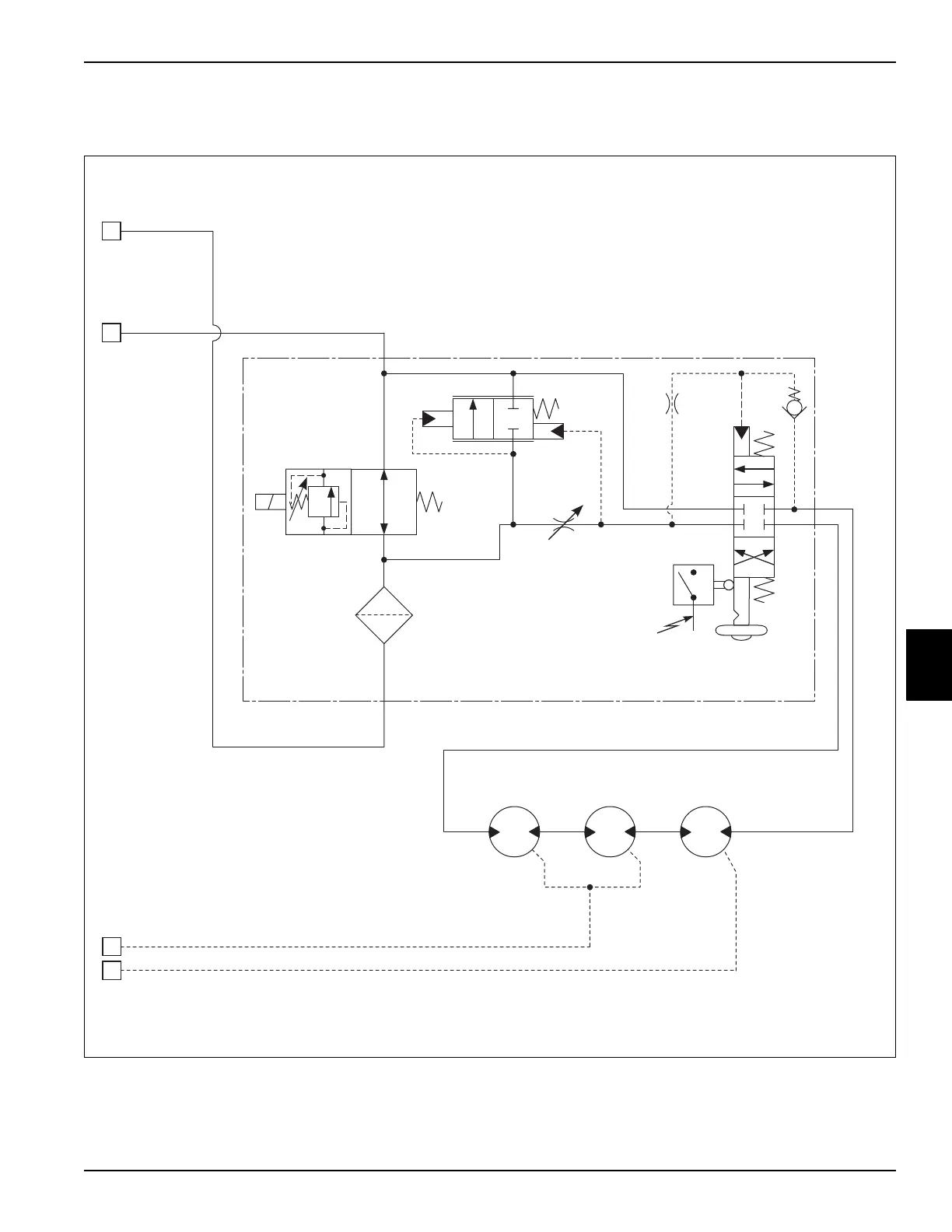

Hydraulic Schematic (3WD),
Continued
Figure 6-7
Reel Valve Unit
Relief Valve
3020 psi
TN3030
Right
Reel
Motor
T
B
2
11
7
8
0.020 in.
Check
Valve
Reel
Valve
Backlap
Enable Switch
145 Micron
Filter
P
A
Left
Reel
Motor
Center
Reel
Motor
0.60
ci
0.60
ci
0.60
ci
Reel Speed
Control Valve
