9-8 4252490-Rev A
ACCESSORIES AND MISCELLANEOUS REPAIR
9

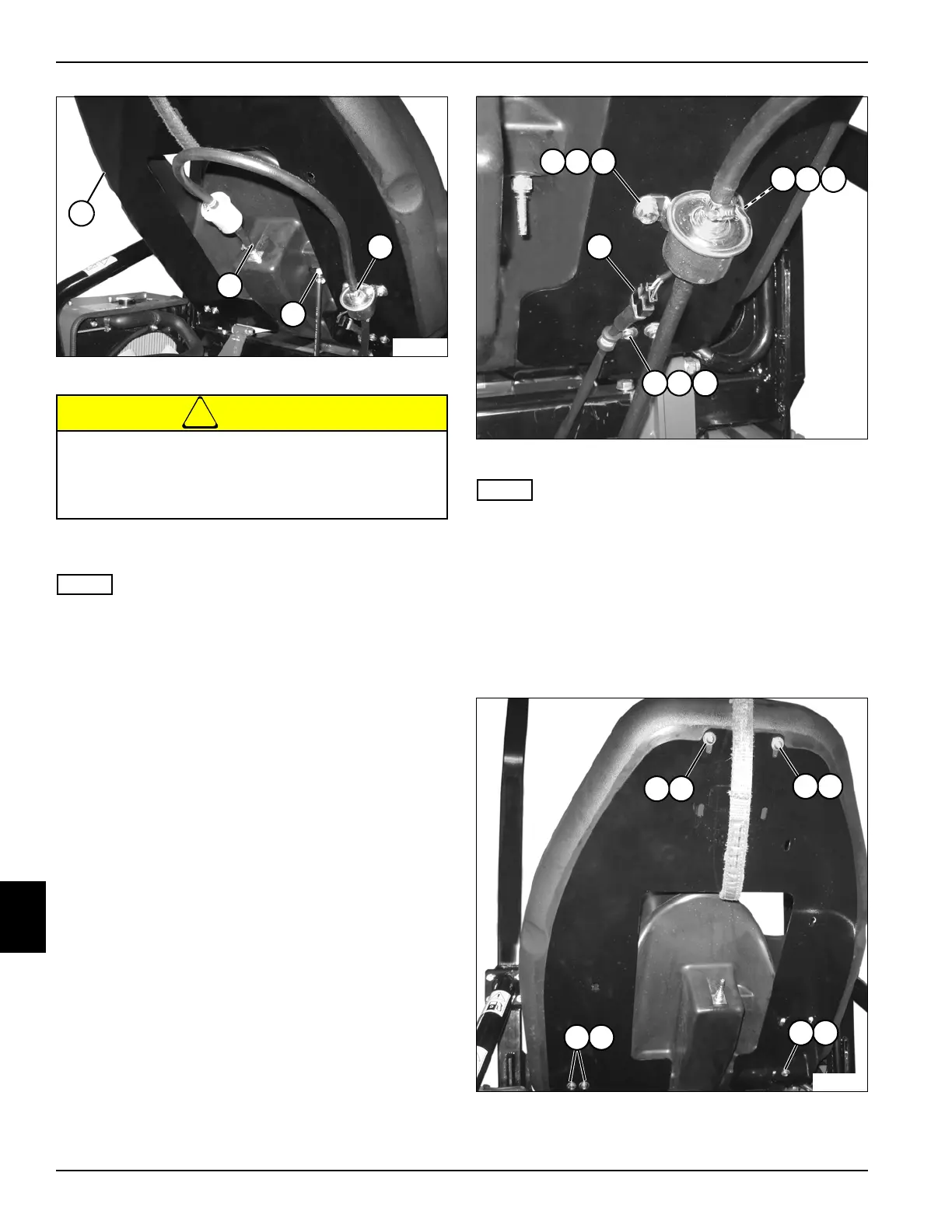

Figure 9-10
!
CAUTION
4. Support fuel tank (1) using a suitable lifting device.
NOTE
Fuel system capacity is 14.2 gal (54 L). Have suitable
container(s) available that can hold up to 15 gal (57 L) of
fuel.
5. Place a suitable container under the fuel tank.
6. Disconnect fuel line (4) and drain fuel into container.
Lower fuel tank (1) to operating position and loosen
the fuel cap to aid in draining fuel.
7. After fuel tank is drained, raise fuel tank (1) and
connect fuel line (4).
8. Disconnect fuel lines (2 and 3). Plug lines and cap
fittings to prevent leakage and contamination.
Figure 9-11
NOTE
Label all wires before disconnecting to ensure correct
installation.
9. Disconnect fuel pump wire connector (14).
10. Remove screw (11), flat washer (12), and clamp (13).
11. Remove screw (5), lock washer (6), and flat washer
(7).
12. Remove screw (8), lock washer (9), and flat washer
(10).
Figure 9-12
13. Remove screws (15) and flat washers (16).
Contact with diesel fuel can damage your skin.
Use gloves when working with diesel fuel. If you
come in contact with diesel fuel, wash skin
immediately.
4
1
2
3
TN3825
14
65
7
98
10
1211
13
TN3831
1615
1615
1615
1615
TN3838
To Next Page
