3-16 4252490-Rev A
ENGINE
3

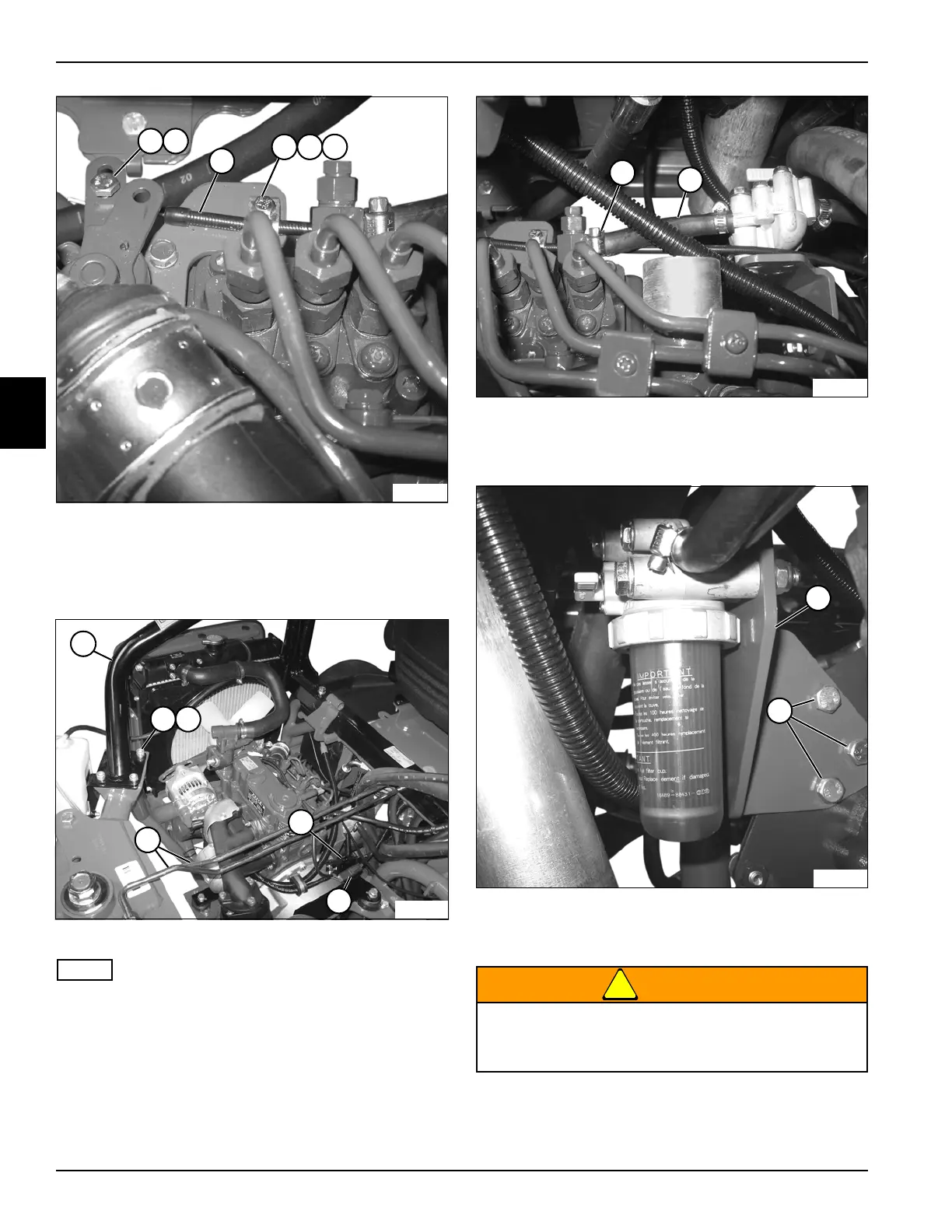

Figure 3-25
10. Loosen screw (1) and cable clamp (2).
11. Remove screw (4), nut (5), and clamp (6).
12. Disconnect throttle cable from engine.
Figure 3-26
NOTE
Label all wires before disconnecting to ensure correct
installation.
13. Disconnect wire connectors (10 and 11).
14. Remove hydraulic lines (12).
15. Remove seven screws (8) and lock washers (9), and
remove OPS bracket (7).
Figure 3-27
16. Loosen hose clamp (13) and disconnect fuel hose
(14).
Figure 3-28
17. Remove screws (16), and disconnect fuel filter and
bracket (15) from engine.
!
WARNING
18. Using a suitable engine hoist, support the engine.
TN3902
1 2
4 5 6
3
10
TN3937
11
12
8 9
7
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
TN3897
14
13
TN3961
16
15
