Textron JACOBSEN GP400 Technical/Repair Manual

4-12 4252490-Rev A
ELECTRICAL
4

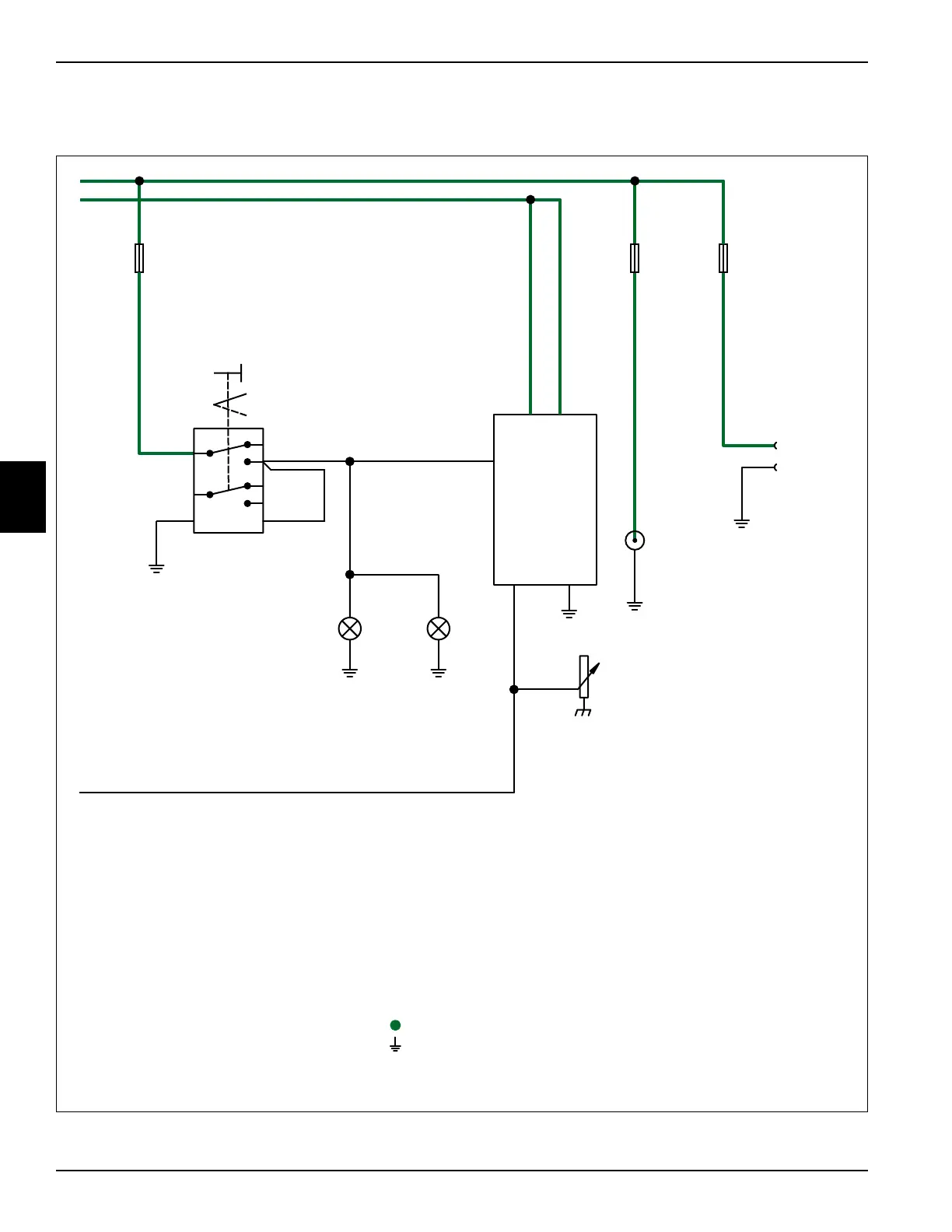

Electrical Schematic
Continued
Figure 4-5
Splice 3 Splice 3
Splice 7
Blu/Grn
Blu
(12)
(6)
Wht
F6
15A
Fuse
Grn/
Blk
(11)
(5)
Wht
F5
10A
Fuse
Grn/
Org
(8)
(2)
Wht
F2
10A
Fuse
Blk
B3
Engine
Temperature
Sensor
(Diesel)
Blu/
Grn
(2) (6)
Signal Gnd
(3) (5)
12V
(1) Back Light
12V
H6
Engine
Temperature
Gauge
(Diesel)
(1)
(3)
(6)
(4)
(5)
(7)
(8)
(2)
Blk
Blk
Blk
Blk
Blu
On
BLu
Blu/Red Blu/Red Blu/Red
Blu/
Red
Blu/
Red
Blu/
Red
Off
S9
Light
Switch
E1
Work
Light
E2
Work
Light
Blu/Grn Blu/Grn
J5
12V
Accessory
Socket
J6
12V
Air
Seat
Connector
Blk
Grn/Org
Blk
Switched Power Circuit
Ground Circuit
TN3068
