Topcon SR-LEDW User Manual

- 4 -
■ Names and Functions on Panel Switches
Switches
The switches on the panel have the following two functions.
∙ Measurement functions – The functions listed beside the switches
∙ Function mode functions – The functions listed below the switches
Switching Function Mode ☞ ‘3.1.2 Entering/Returning from the Function Mode’
Switch functions are as follows:
MEAS./HOLD switch : Starts measurements and stops “Auto Run”.
☞
’2.2 Auto Run’
FIELD switch : Changes the measuring field.
Available measuring range and diameter ☞ 6 ‘Appendix Specifications and Performance’
UP switch and DOWN switch : Moves up/down the measurement data number on the LCD screen.
The measurement result can be stored up to 50 data.
ABS./DIF. switch : Used to change the display of the absolute value and the color
difference/relative luminance. "ABS." is set in the initial condition.
LAMP switch : Turns the LCD screen on and off. The default setting is on.
ROTATION
SHIFT
CHANGE
ENTER
FUNCTION
UP
DOWN
HOLD
MEAS.
DIF.
ABS.
LAMP
FIELD
ABS./DIF. switch
FILED switch
LAMP switch
DOWN switch
UP switch

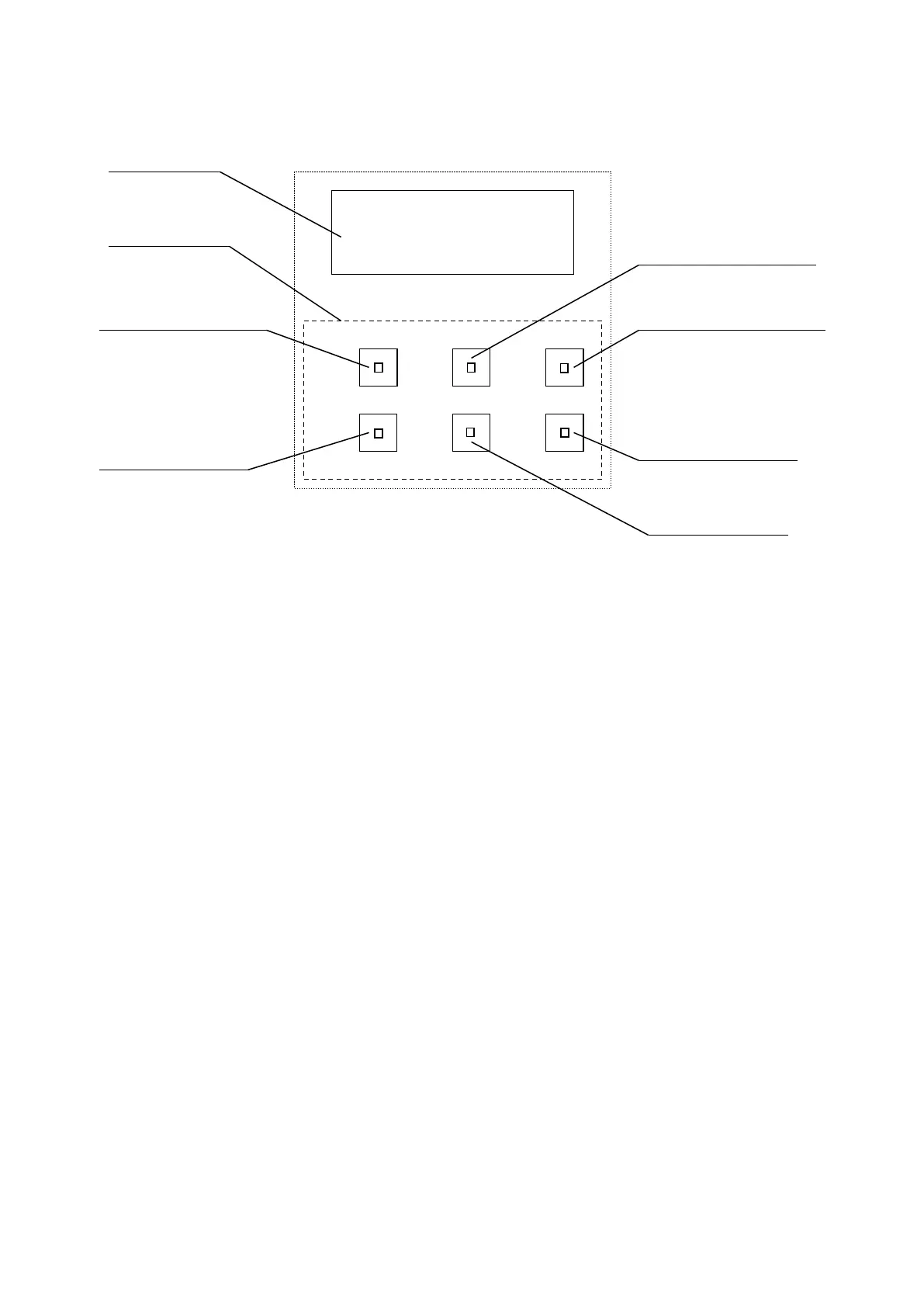

Panel switches
(SHIFT switch)
(CHANGE switch)
(ROTATION switch)
(FUNCTION switch)
(ENTER switch)
MEAS./HOLD switch
LCD screen
