PREPARATIONS
SELECTING THE OUTPUT PORT
The data output port can be selected. Before shipment, it is set to "OFF."

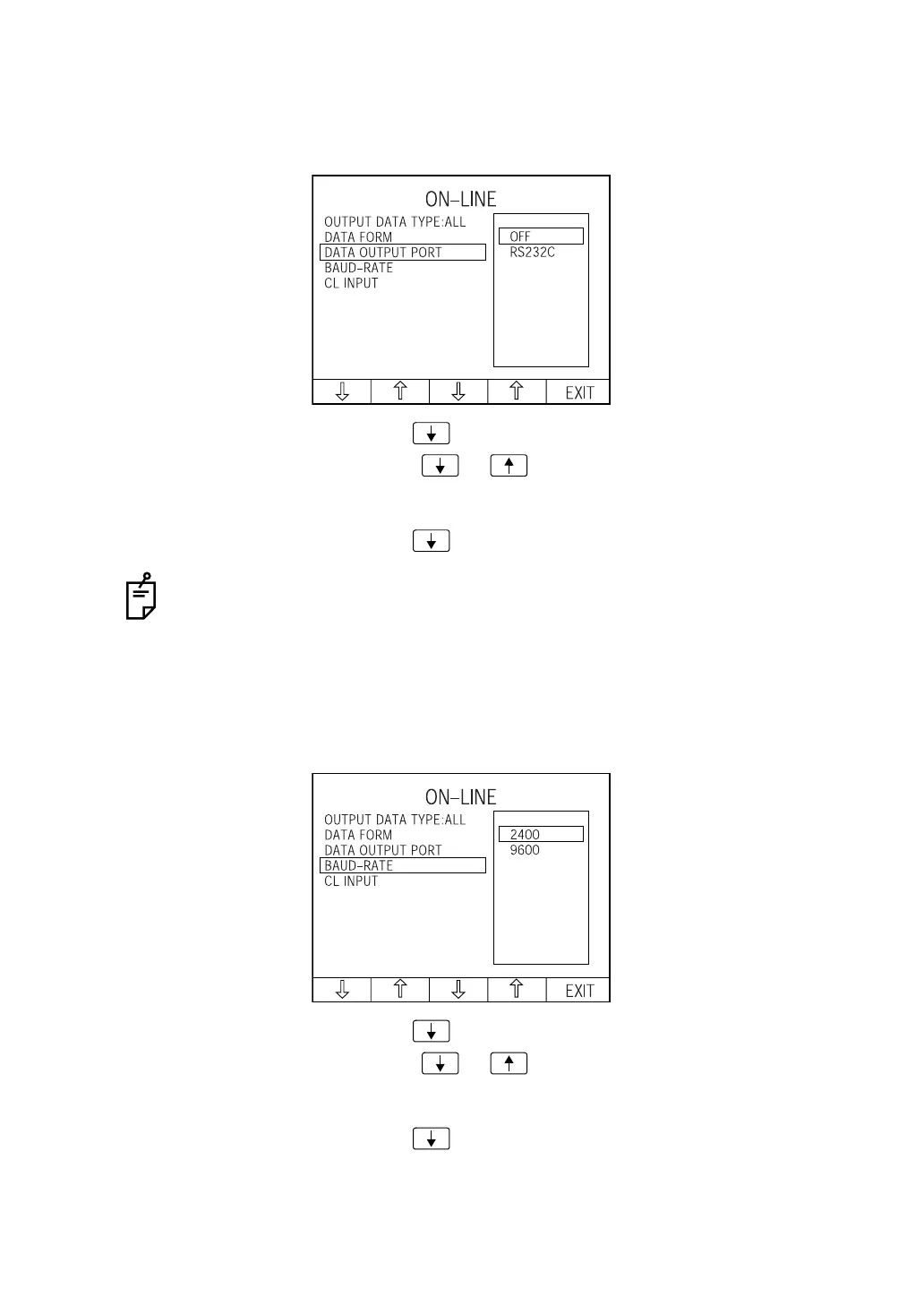

1 In the "INITIAL MENU screen," select "ON-LINE" and get the "ON-LINE screen."
2 Press the Set item change button and bring the cursor to "DATA OUTPUT PORT."
3 Press the Set value change button or and select:
OFF (do not output data); or
RS232C (output data via RS-232C OUT terminal)
4 Press the Set item change button ; the cursor moves to the next item.
SETTING THE SPEED OF RS-232C COMMUNICATION
The RS-232C communication speed can be set. Before shipment, it is set to "2400" (baud rate
2400).
1 In the "INITIAL MENU screen," select "ON-LINE" and get the "ON-LINE screen."
2 Press the Set item change button and move the cursor to "BAUD-RATE."
3 Press the Set value change button or and select:
2400 (baud rate 2400), or
9600 (baud rate 9600)
4 Press the Set item change button ; the cursor goes to the next item.
The USB OUT terminal outputs data when the cable is connected to it.
Even if RS232C is selected, data are outputted from the USB OUT terminal when
the cable is connected to it and the external device is ready for receiving.
