PREPARATIONS
SETTING STEP
The measurement step can be selected from 0.12 and 0.25. Before shipment, it is set to
"0.25."

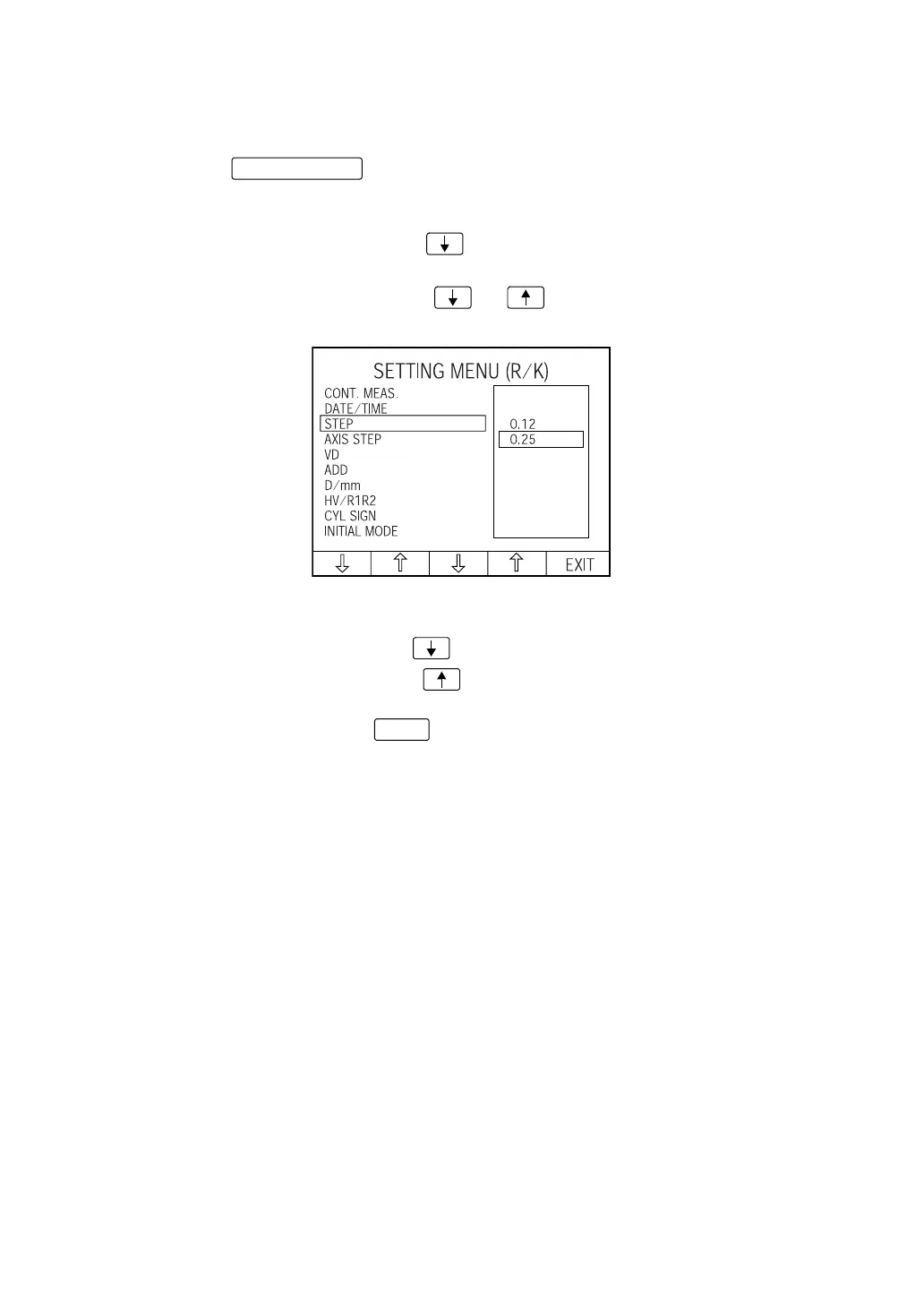

1 Press the of the control panel and get the "SETTING MENU (R/K)
screen." "CONT. MEAS." is highlighted, and "ON" and "OFF" are displayed on the right.
The cursor shows the set content.
2 Press the Set item change button and bring the cursor to "STEP." Measurement
steps are displayed on the right. Set figures are highlighted.
3 Press the Set value change button or and bring the cursor to the figure of
desired measurement step:
0.12 : The display step is set to 0.12 units.
0.25 : The display step is set to 0.25 units.
4 Press the Set item change button ; cursor moves to the next item (AXIS STEP).
Press the Set item change button ; the cursor moves to the previous item (DATE/
TIME).
5 To exit from the menu, press and return to the MEASUREMENT screen.
MENU button
EXIT
