PREPARATIONS
SETTING CYL SIGN
The display format of CYLINDER sign on the monitor screen can be selected from "-," "+" and
"MIX." Before shipment, it is set to "-."

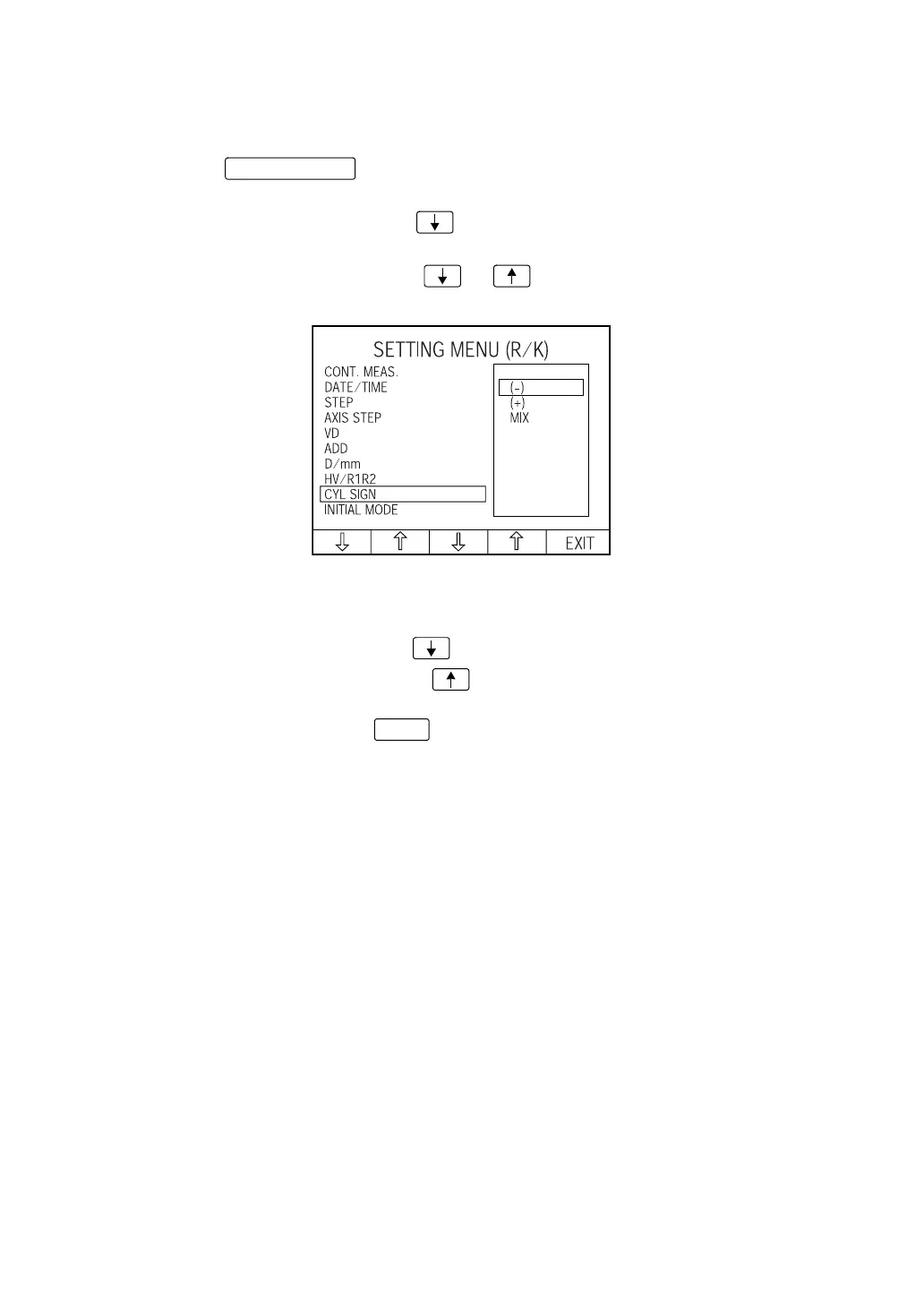

1 Press the of control panel and get the "SETTING MENU (R/K) screen."
"CONT. MEAS." is highlighted, and "ON" and "OFF" are displayed on the right.
2 Press the Set item change button and bring the cursor to "CYL SIGN." Display for-
mats of CYLINDER sign are displayed on the right, and the set format is highlighted.
3 Press the Set value change button or and bring the cursor to the desired dis-
play format of CYLINDER sign:
(-) : The display format of CYLINDER sign is set to "-" display.
(+) : The display format of CYLINDER sign is set to "+" display.
MIX : The display format of CYLINDER sign is set to "MIX" display.
4 Press the Set item change button ; cursor moves to the next item (INITIAL MODE).
Press the Set item change button ; the cursor moves to the previous item (HV/
R1R2).
5 To exit from the menu, press and return to the MEASUREMENT screen.
MENU button
EXIT
To Next Page
