Toshiba B-EX4 SERIES - Page 20

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revised on OCT. 2013)
4.1 DISC CUTTER (B-EX204-QM-R)
4- 4

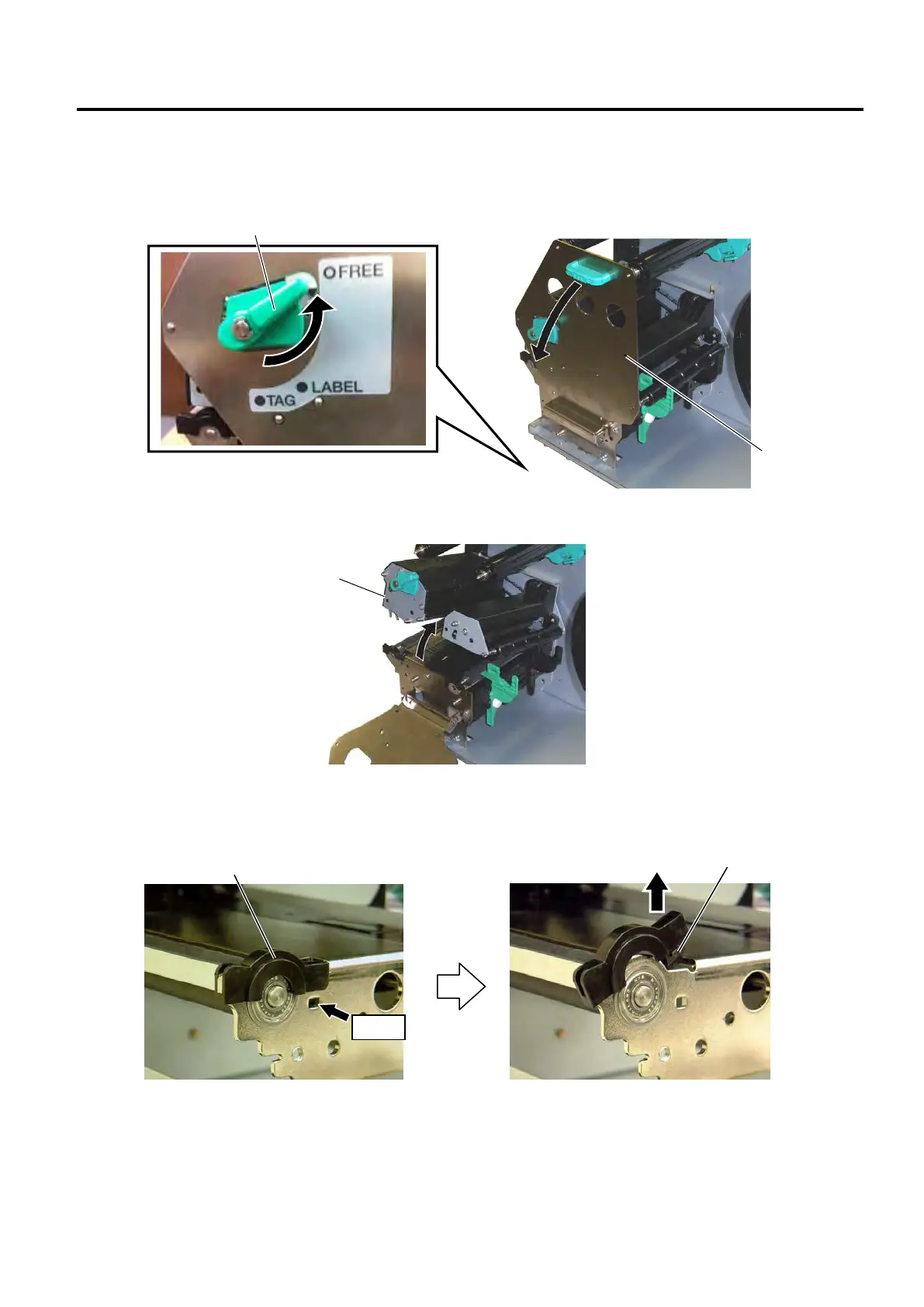

4.1.2 Mounting the Cutter Unit
1. Turn the Head Lever to FREE position and open the Ribbon Shaft Holder Plate.
2. Open the Print Head Block.
3. Push the hook through the rectangle hole with a tool with a fine tip to remove the Platen Holder Cover.
Ribbon Shaft
Holder Plate
Head Lever
Print Head Block
Platen Holder Cover
Hook
Push
