4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.2 ROTARY CUTTER (B-EX204-R-QM-R)
4-10

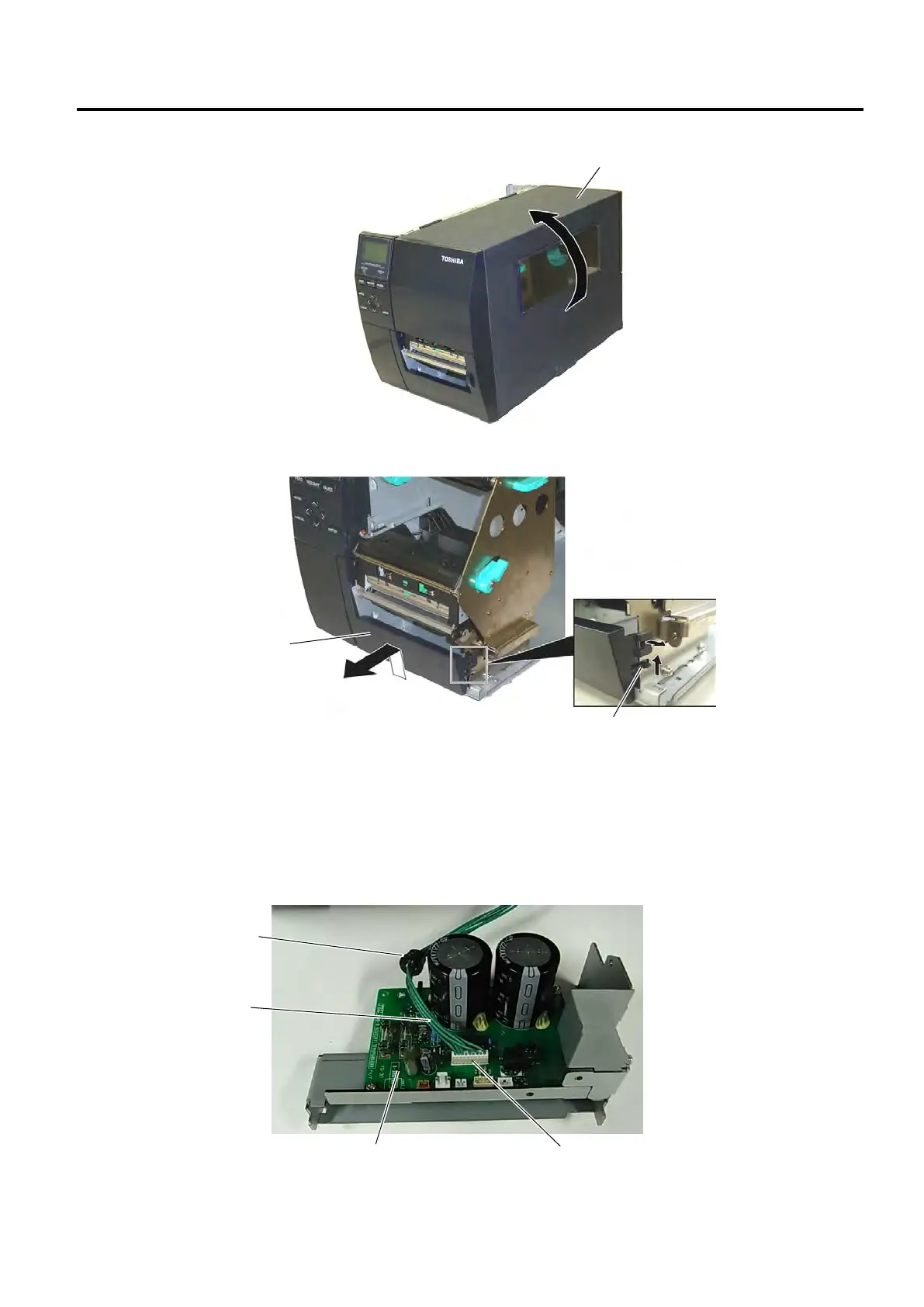

4. Fully open the Top Cover.
5. Release the tab on the right end by pushing it, then remove the Front Panel.
4.2.2 Mounting the Cutter Drive Unit
1. Put the Cord Bush onto the Harness Ass’y in the orientation as shown below.
2. Connect the Harness Ass’y to CN7 on the Cutter Driver Unit.
CN7
Harness Ass’y
Tab
Front Panel
Cord Bush
Cutter Drive Unit
Top Cover
