Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.2 ROTARY CUTTER (B-EX204-R-QM-R)
4-11

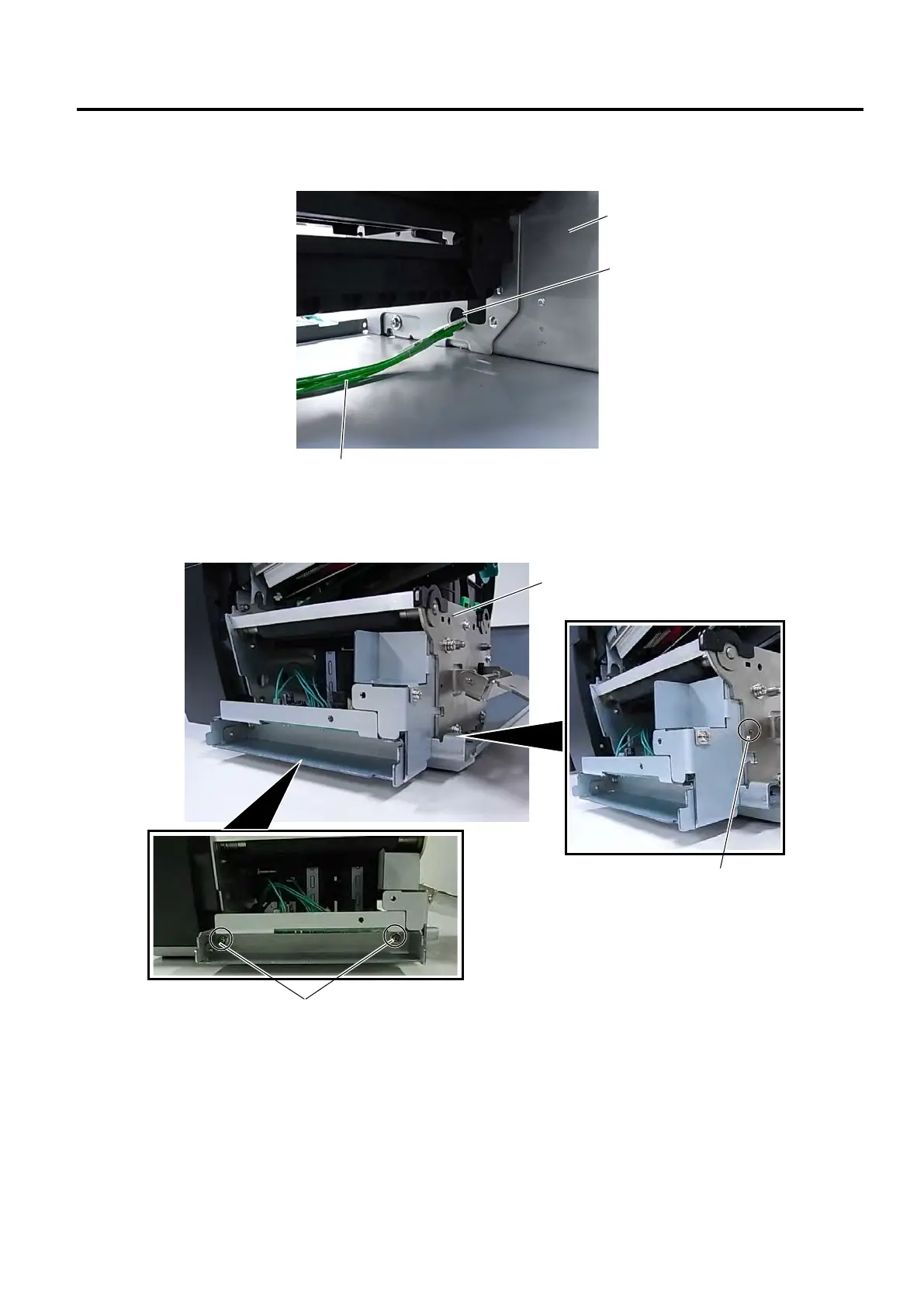

3. Insert the connector of the Harness Ass’y into the hole in the Main Frame, then fit the Cord Bush into the
hole.
4. Place the Cutter Drive Unit under the Platen Holder Block and secure it with the three M-4x8 screws.
Hole
Main Frame
Harness Ass’y
M-4x8 Screw
M-4x8 Screw
Platen Holder Block

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
